10 MHz Function Generator Manufacturer,Supplier and Exporter in India

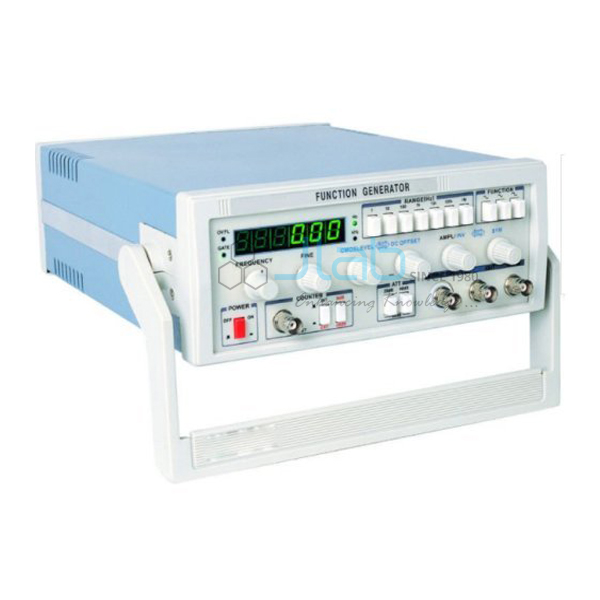

10 MHz Function Generator

Product Code : JA-SG-1548

A 10 MHz function generator for teaching laboratories, giving sine, triangle, square, positive and negative ramp and positive and negative pulse waveforms up to 10 MHz. The listing adds VCF capability, TTL/CMOS and sync outputs, distortion below 1% from 10 Hz to 100 kHz and an internal 1 Hz to 30 MHz counter (SKU JA-SG-1548).

Specifications

Values from the listing:

Product 10 MHZ Function Generator
SKU JA-SG-1548
Maximum frequency 10 MHz
Waveforms Sine, triangle, square, ±ramp, ±pulse
Voltage-controlled frequency Yes
Additional outputs TTL/CMOS, sync
Distortion Under 1%, 10 Hz to 100 kHz
Frequency response 0.5 dB or better, 0.1 Hz to 100 kHz
Built-in counter 1 Hz to 30 MHz

Scope of supply and ordering

This listing covers one 10 MHz function generator, supplied by JaincoLab.

Frequently asked questions

What is the highest output frequency?
10 MHz.

How flat is the output across frequency?
The listing gives a frequency response within 0.5 dB from 0.1 Hz to 100 kHz, with distortion below 1% from 10 Hz to 100 kHz.

Related products

Browse the full signal generator range for related items.

Request a quote

Enquiries for the 10 MHZ Function Generator can be sent with the quantity needed through our contact page. For tender or project supply, see our tenders page.
