Advanced Measuring Equipment for Electrical Experiments Manufacturer,Supplier and Exporter in India
Product Code : SCL-LEP-12421

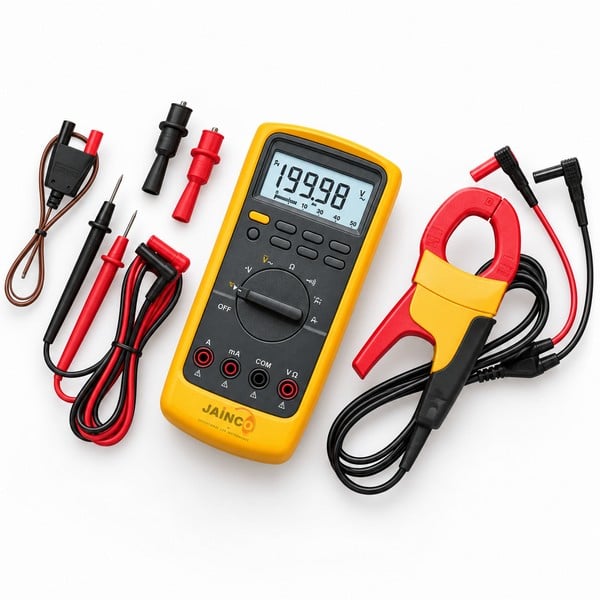

The Advanced Measuring Equipment for Electrical Experiments (SKU SCL-LEP-12421) is electrical measuring equipment for school and college physics laboratories. The listed specification is for its 6000-count multimeter, which measures AC and DC voltage from 6 V to 1000 V, AC and DC current from 600 µA to 10 A, resistance, capacitance, frequency and temperature, with continuity and diode tests. JaincoLab supplies it to schools, colleges and universities.
Specifications
The listed multimeter has a 6000-point resolution and the ranges shown in the table, with continuity and diode test functions. The full contents of the equipment set are confirmed on the quotation.
| Product | Advanced Measuring Equipment for Electrical Experiments |
| SKU | SCL-LEP-12421 |
| Resolution | 6000-point multimeter |
| Voltage (AC/DC) | 6 V to 1000 V |
| Current (AC/DC) | 600 µA to 10 A |
| Resistance | 600 ohm to 60 Mohm |
| Capacitance | 60 nF to 6000 µF |
| Frequency | 9.999 Hz to 9.999 kHz |
| Temperature | -20 °C to +780 °C |
| Other functions | Continuity test, diode test |
Applications of the electrical measuring equipment
Advanced electricity practicals need meters with wide ranges and extra functions, so that one instrument covers voltage, current, resistance, capacitance and temperature.
- Measuring voltage and current in AC and DC circuits
- Measuring resistance and capacitance of components
- Frequency measurements in AC experiments
- Temperature measurements with a probe
- Continuity and diode testing in electronics
Scope of supply and ordering
The listing covers the Advanced Measuring Equipment for Electrical Experiments. The full contents of the set and quantities are confirmed on the quotation.
MOQ, lead time and packing are set on each quotation for the number of sets and the delivery destination. Sets are shipped in their storage cases. JaincoLab supplies schools, colleges, universities and export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the multimeter measure?
AC/DC voltage and current, resistance, capacitance, frequency and temperature.
What is the voltage range?
6 V to 1000 V AC/DC.
What is the current range?
600 µA to 10 A AC/DC.
What else is in the set?
The full contents are confirmed on the quotation.
