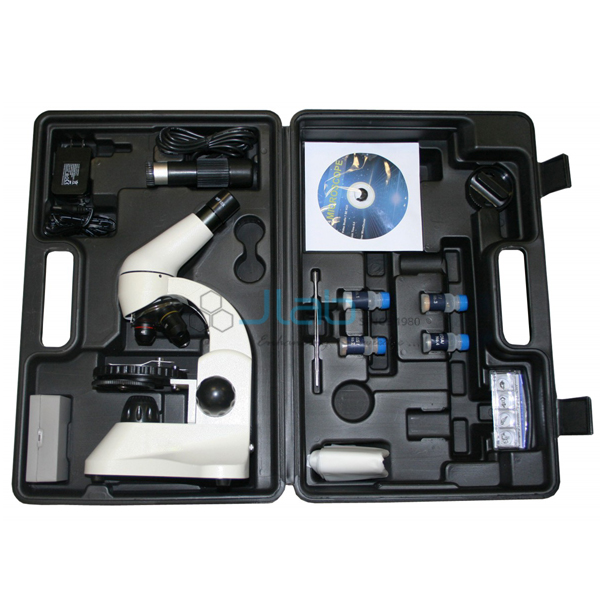

Beginner Microscope Kit with Digital Camera Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8030
The Beginner Microscope Kit with Digital Camera (SKU JA-M-8030) is supplied by JaincoLab for young learners who want to see and record what is under the lens. The microscope gives 40x, 100x and 400x with top and bottom LED lighting, and a digital eyepiece camera replaces the eyepiece to show still images and live video on a computer, with imaging software and instructions. An activity guide suggests experiments, making this beginner microscope kit with digital camera suitable for home and school science.
Specifications
The listing gives a monocular 45-degree head rotating 360 degrees, a locked-on WF10x glass eyepiece, a reverse nosepiece with 4x, 10x and retractable 40x objectives, a 3.5 in rotating stage, coarse focusing with stage stop, dual LEDs with separate intensity control and a digital eyepiece camera.
| Product | Beginner Microscope Kit with Digital Camera |
| SKU | JA-M-8030 |
| Head | Monocular, 45 degrees, rotates 360 degrees |
| Eyepiece | Locked-on WF10x glass eyepiece |
| Objectives | 4x, 10x, 40xR (retractable); parfocal, parcentred, colour-coded |
| Magnification | 40x, 100x, 400x |
| Stage | 3.5 in round gliding stage, 360-degree rotation, spring clips |
| Illumination | Top and bottom LED with separate intensity control; 6-hole disc diaphragm with coloured filters |
| Power | 2 AA batteries (not included) or AC adapter |
| Camera | Digital eyepiece camera with imaging software and instructions |
| Body | White coated plastic body; 16 x 10.5 x 7 in, 6 lb as listed |
Applications of the beginner microscope kit with digital camera
Students use it to study prepared and home-made slides of cells, tissues and pond organisms with bottom light, to look at insects, coins and rocks with top light, and to capture images on a computer for projects and class presentations.
- Making and viewing first slides
- Capturing images for school projects
- Pond water and brine shrimp activities
- Crystals, insects and flowers
- Field study using battery power
Scope of supply and ordering

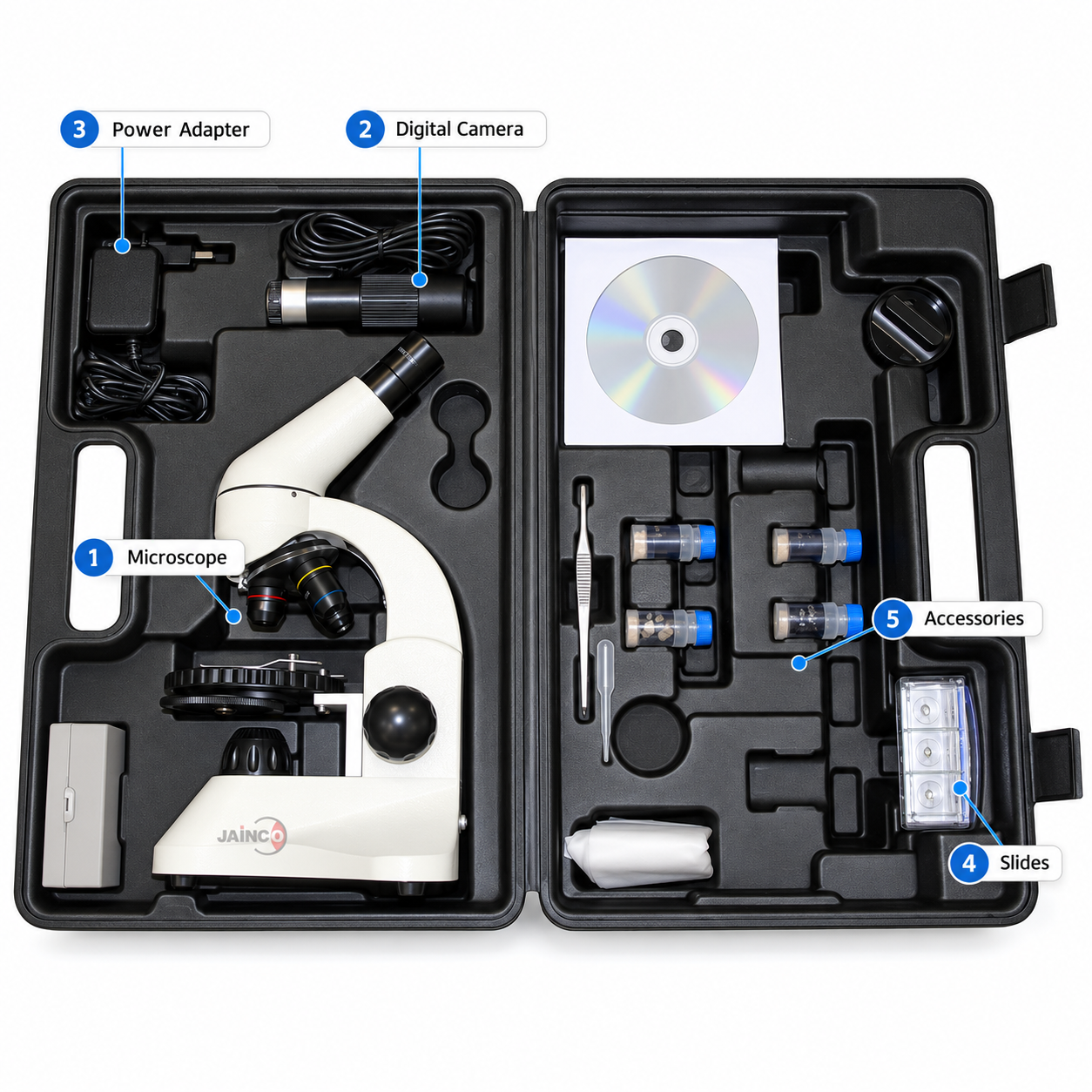

One unit is one beginner microscope with the digital eyepiece camera, imaging software, instructions and activity guide. Batteries are not included; the AC adapter, spares and quantities are confirmed on the quotation.
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How does the camera connect?
Remove the eyepiece and insert the digital eyepiece camera, then view still images and live video on a computer with the supplied software.
What magnifications does it give?
40x, 100x and 400x with the WF10x eyepiece and the 4x, 10x and 40xR objectives.
How is it powered?
By two AA batteries, which are not included, or by an AC adapter.
Related products
- Beginner Microscope Kit
- Young Scientist Dual Scope
- Digital Camera Microscope with Dual View
- Dual View with Digital Camera Coaxial Focusing Microscope
Other student, laboratory and research models are listed in the microscopes range.
Request a quote
For a price on the Beginner Microscope Kit with Digital Camera (JA-M-8030), share the quantity required and the delivery destination through the JaincoLab contact page.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
