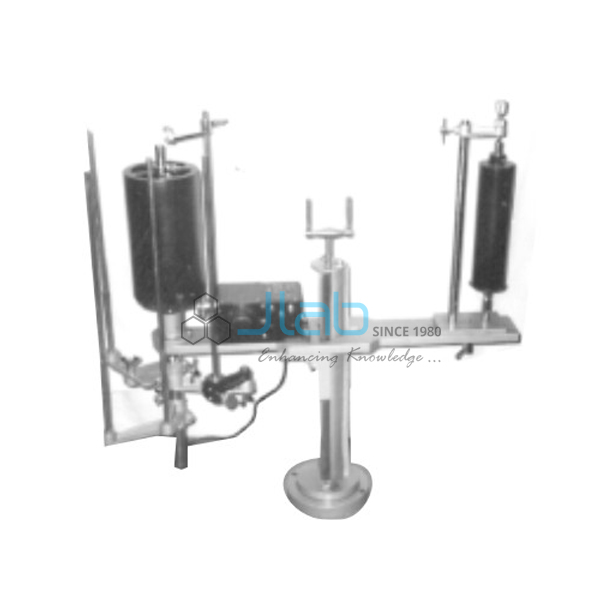

Brodie Starling Kymograph Manufacturer,Supplier and Exporter in India
Product Code : JA-BSK-2346
The Brodie Starling Kymograph (SKU JA-BSK-2346) is a recording drum for pharmacology and physiology laboratories, used to write muscle and tissue responses as a trace on moving paper. This Brodie Starling kymograph carries a 6 x 11 inch cylinder on a crown wheel engaging shaft, stands on a rigid cast iron stand and takes a long paper loop whose length can be set between 60 and 66 inches. JaincoLab makes it for pharmacy, medical and life-science colleges.
Specifications
The kymograph has a 6 x 11 inch cylinder on a crown wheel engaging shaft, a spring-loaded device for turning the drum by hand, a paper length adjustable from 60 to 66 inches through a part that moves in a slot in the bed, and a cast iron stand raised and lowered by a large screw.
| Product | Brodie Starling Kymograph |
| SKU | JA-BSK-2346 |
| Cylinder | 6 x 11 inch, on a crown wheel engaging shaft |
| Hand turning | Spring-loaded device allows the drum to be turned by hand when needed |
| Paper length | Variable from 60 to 66 inches, set by a part moving in a slot in the bed |
| Stand | Rigid cast iron, raised and lowered by a large screw |
| Fine adjustment | Returns the outer arm to exactly the same position after a paper change |
| Optional accessories | Double time marker, separate smoking and varnishing apparatus, smoking burner |
Applications of the Brodie Starling kymograph
Pharmacology and physiology departments use the Brodie Starling kymograph when a response has to be recorded against time over a long, continuous trace, because the 60 to 66 inch paper loop carries a longer record than paper wrapped round a single drum.
- Recording contractions of isolated muscle and tissue preparations in experimental pharmacology practicals
- Long series such as dose-response work, where the extended paper loop avoids stopping to change paper
- Recording with a time marker so that each trace carries its own time base
- Showing B.Pharm students the commonly used instruments of experimental pharmacology
- Physiology and zoology teaching laboratories in medical and life-science colleges
Scope of supply
The listing covers the Brodie Starling kymograph with its 6 x 11 inch cylinder, crown wheel engaging shaft, hand-turning device, fine adjustment and cast iron stand. The double time marker, the separate smoking and varnishing apparatus and the smoking burner are optional. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing for the kymograph are confirmed on each quotation according to the number of units, the accessories chosen and the delivery destination. JaincoLab supplies single units for a department, bulk orders for new pharmacy and medical colleges, and export consignments to Africa, the Middle East and South and South-East Asia.
Turnkey laboratory projects are a JaincoLab specialism. We manufacture and export equipment for education-ministry programmes, World Bank tenders and United Nations projects, with successful deliveries in many countries. If you are bidding for a similar tender, share the bill of quantities through our tenders page.
Frequently asked questions
What size is the recording cylinder?
The cylinder is 6 x 11 inches and is mounted on a crown wheel engaging shaft.
How long a paper can it take?
The paper length can be set anywhere from 60 to 66 inches, which suits long continuous records.
Can the drum be turned by hand?
Yes. A spring-loaded device allows the drum to be turned by hand when necessary.
Which accessories can be ordered with it?
A double time marker, a separate smoking and varnishing apparatus and a smoking burner are offered as optional accessories.
What should a quotation request include?
Send the SKU JA-BSK-2346, the number of kymographs, the optional accessories you need and the delivery destination.
Related products
See the complete JaincoLab range of pharmacology lab equipment, including levers, stands and tissue holders for kymograph recording.
Request a quote
To order the Brodie Starling Kymograph, send the quantity, the accessories required and the delivery destination through the JaincoLab contact page or email [email protected].
