Chrome Steel Bar Magnet Manufacturer,Supplier and Exporter in India

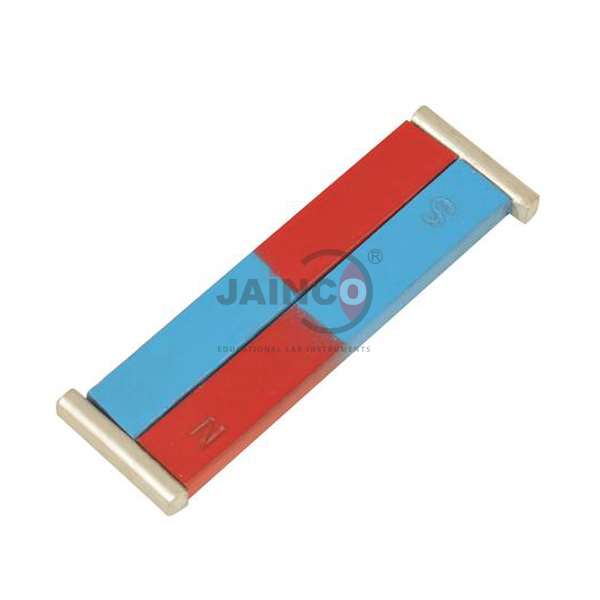

Chrome Steel Bar Magnet

Product Code : JA-M-7926

These chrome steel bar magnets come in pairs with keepers. Each magnet is coloured half red and half blue, so students can tell the poles apart at a glance. Four lengths are listed, from 50 mm to 150 mm, all with a 12 x 5 mm section. They cover school magnetism practicals from attraction tests to field plotting.

Specifications of the chrome steel bar magnets

Product codeJA-M-7926
MaterialChrome steel
PackingPairs, with keepers
Pole markingColoured half red, half blue
Size 150 x 12 x 5 mm
Size 275 x 12 x 5 mm
Size 3100 x 12 x 5 mm
Size 4150 x 12 x 5 mm
ManufacturerJaincoLab, Ambala, India

Magnetism practicals with the bar magnets

  • Finding the poles. Hang one magnet in a stirrup on a thread, well away from iron. It settles along the north-south line, and the end pointing north is the north-seeking pole.
  • Plotting field lines. Lay the magnet under a sheet of paper and move a magnetic plotting compass from pole to pole. Mark the needle direction with dots, then join the dots into lines.
  • Seeing the field pattern. Sprinkle iron filings on a card laid over the magnet and tap the card gently. Repeat with two magnets end to end to compare like and unlike poles.
  • Sorting materials. Test a set of metal testing strips against one pole to separate magnetic metals from non-magnetic ones.

Frequently Asked Questions

Why are the magnets packed with keepers?
A keeper is a small piece of soft iron laid across the ends of the pair. With opposite poles side by side and keepers in place, the magnetic field forms a closed loop. This helps the magnets hold their strength in storage.

How should the bar magnets be stored between practicals?
Store each pair side by side, with the red end of one next to the blue end of the other. Fit the keepers across both ends. Keep the box away from other magnets, phones and computers.

Why does a bar magnet get weaker, and can it be restored?
Dropping, knocking, heating, or storing it with like poles together all weaken a magnet. A weakened magnet can be remagnetised in a magnetising coil, or by stroking it from end to end with a stronger magnet.

How can students check which end is the north pole?
Hang the magnet freely so it can turn, away from iron and other magnets. The end that settles pointing north is the north-seeking pole. A plotting compass works too, as its north end points towards the magnet's south pole.

Should iron filings be sprinkled straight onto the magnet?
No. Lay a sheet of paper or thin card over the magnet first. Filings that stick to a bare magnet are hard to remove and spoil its surface. Tip used filings back into their pot and wash your hands afterwards.

Why do my plotted field lines look distorted?
Something magnetic nearby is pulling the compass. Move steel rulers, clamps, the second magnet and any iron bench fittings well away from the paper. Far from the magnet, the Earth's own field also starts to show in the plot.

Other magnetism equipment in the range

See the Magnetisms range and more physics apparatus from JaincoLab, a physics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
