Product Code : JA-PET-1446

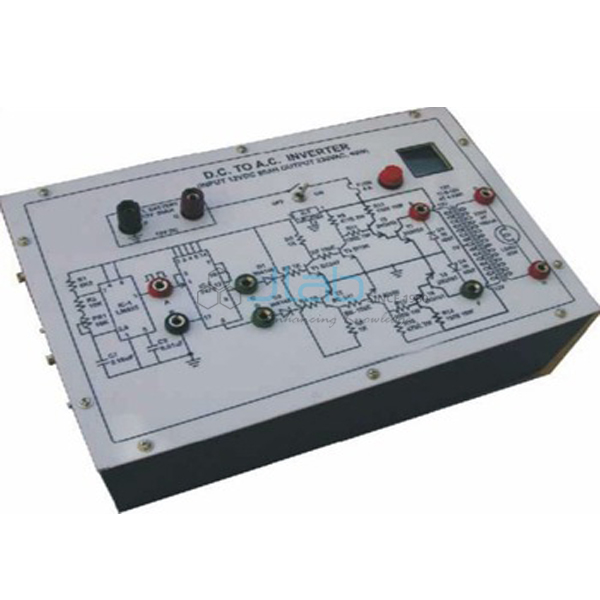

The DC to AC inverter trainer shows how a multivibrator circuit converts a 12 V battery supply into AC that lights a 40 W, 230 V lamp. Two ICs generate the AC drive signals, and four low-power and four high-power NPN transistors and a 12-0-12 V, 4 A transformer are built in; colour-coded test points show how the wave shape changes from DC to AC (SKU JA-PET-1446).
Specifications
Parts and ratings listed for the inverter board:
| Product | DC To AC Inverter |
| SKU | JA-PET-1446 |
| Operating supply | 12 V, 80 Ah battery (any car battery) |
| Signal generation | IC-1 and IC-2 generate the AC drive signals |
| Transistors | Four NPN low-power; four NPN high-power |
| Transformer | 12-0-12 V AC, 4 A |
| Load | Lamp holder with 40 W, 230 V lamp |
| Test points | Red, black and green terminals |
| Other apparatus required | 12 V DC, 80 Ah battery (any car battery); dual trace CRO 20 MHz (unearthed) |
Scope of supply and ordering
The listing covers the inverter board with its 40 W lamp, patch cords and operating instructions, supplied by JaincoLab; the 12 V, 80 Ah battery is listed as other apparatus required. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What battery does the inverter need?
A 12 V, 80 Ah battery; any car battery can be used.
What load does the inverter drive?
A 40 W, 230 V lamp in a lamp holder on the board.
How are the waveforms checked?
Through the red, black and green test-point terminals, which show the wave shape and pulse amplitude as DC is changed to AC; a dual trace oscilloscope is used.
