Determination of Energy Band Gap in Semiconductor Diode Manufacturer,Supplier and Exporter in India
Product Code : JA-AET-1460

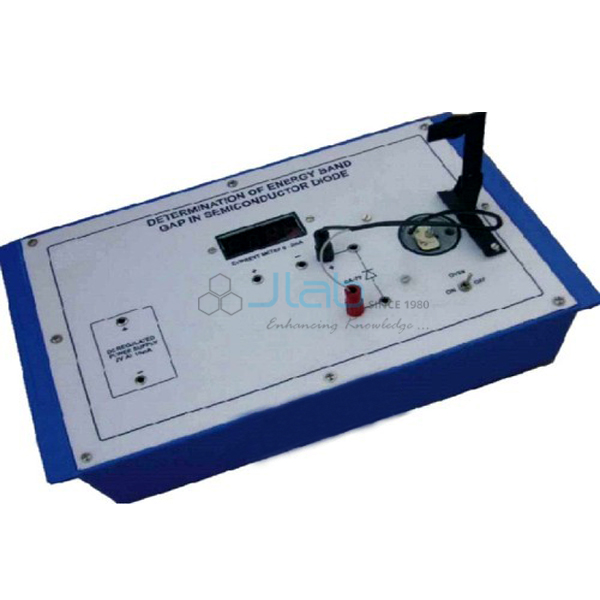

The energy band gap trainer determines the energy band gap of a P-N junction diode from its reverse saturation current at different temperatures. An electrically heated oven warms the diode, a 0-110 °C thermometer reads its temperature, and a 2 V DC regulated supply and a 3½ digit digital microammeter measure the reverse current (SKU JA-AET-1460).
Specifications
Parts and ratings listed for the band gap set-up:
| Product | Determination of Energy Band Gap in Semiconductor Diode |
| SKU | JA-AET-1460 |
| DC supply | 2 V DC at 10 mA, regulated |
| Meter | Digital microammeter, 3½ digit, DC, 200 microamp range |
| Diode | Semiconductor (P-N junction) diode |
| Thermometer | 0-110 °C |
| Oven | Electrically heated, for heating the diode |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch and fuse |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
Experiments on the band gap set-up
The listed objects are:
- Characteristics of a P-N junction diode for reverse saturation current against temperature
- Determination of the energy band gap of the P-N junction diode
Scope of supply and ordering
The listing covers the band gap apparatus with its oven, thermometer, meter, patch cords and operating instructions, supplied by JaincoLab. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
How is the diode temperature changed?
An electrically heated oven heats the diode, and a 0-110 °C thermometer reads its temperature.
What is measured to find the band gap?
The reverse saturation current of the P-N junction diode at different temperatures, read on the digital microammeter.
What supply is used?
A regulated 2 V DC, 10 mA supply.
