Disk for the Balance of Moments Manufacturer,Supplier and Exporter in India
Product Code : JL-GLE-11213

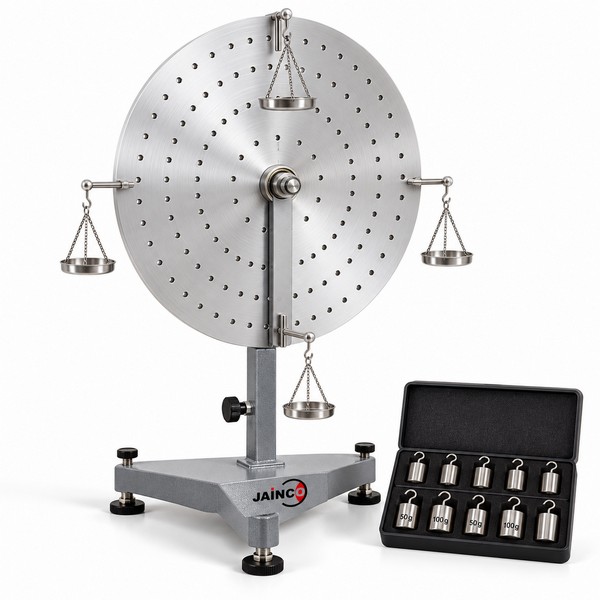

The Disk for the Balance of Moments, SKU JL-GLE-11213, is a JaincoLab moments disc for physics lessons on turning forces. A machined aluminium disc 245 mm across turns on a ball bearing in a vertical plane, held on a tripod stand. Holes arranged in concentric circles let four pins with scale pans be placed at chosen distances from the axis, so loads can be balanced and moments compared. When the disc stays still, the clockwise moments add up to the same total as the anticlockwise moments.
Specifications
From the product data:
| Product | Disk for the Balance of Moments |
| SKU | JL-GLE-11213 |
| Cat. No. | JSS-387/07 |
| Disc | Machined aluminium, 245 mm diameter |
| Bearing | Ball bearing, disc turns in a vertical plane |
| Holes | Placed symmetrically in concentric circles |
| Pins | 4, carrying scale pans |
| Stand | Tripod stand with triangular base |
| Masses | Box of 10 hooked masses (listed as 50 g x 100 g) |
| Other | Base for balancing the device |
Experiments with the moments disc
The disc is used to show:
- The principle of moments with loads on pins at different radii
- That a body is in equilibrium when clockwise and anticlockwise moments are equal
- How the same load gives a larger moment farther from the axis
Scope of supply and ordering
Supplied with the disc, tripod stand, pins with scale pans and the box of hooked masses; the number of units is confirmed on the quotation.
Frequently asked questions
What is the disc diameter?
245 mm, machined aluminium.
How many pins with scale pans are included?
Four.
How does the disc turn?
On a ball bearing, in a vertical plane.
What masses are supplied?
A box of 10 hooked masses, listed as 50 g x 100 g.
Related products
Apparatus for forces and moments is in the JaincoLab general lab equipment range.
Request a quote
Ask for the price of the moments disc (JL-GLE-11213) through our contact page. Tender and project enquiries can be sent through the tenders page.
