Distillation Columns, Vigreux Manufacturer,Supplier and Exporter in India
Product Code : JA-D-1603

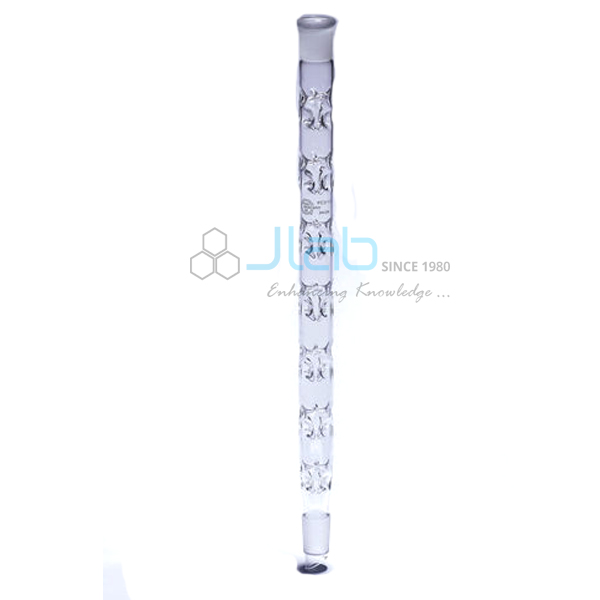

A Vigreux column is a glass fractionating column for separating liquids whose boiling points are close together. Rows of inward-pointing indentations give the rising vapour many surfaces to condense on and boil off again. Two effective lengths are listed, 360 mm and 600 mm, each with a B24 socket at the top and a B24 cone at the bottom.
Specifications of the Vigreux distillation columns
| Product code | JA-D-1603 |
|---|---|
| Type | Fractionating column, Vigreux pattern |
| Material | Glass |
| Inner surface | Rows of inward-pointing indentations along the length |
| Effective lengths | 360 mm and 600 mm |
| Top joint | B24 ground-glass socket |
| Bottom joint | B24 cone |
| Manufacturer | JaincoLab, Ambala, India |
Using the Vigreux column in fractional distillation
- Building the set-up. Push the column's cone into a round bottom flask with joint of matching size and fit a distillation head in the top socket. Join the side arm of the head to a Liebig condenser.
- Separating a two-liquid mixture. Heat the flask slowly in a heating mantle. Collect the first fraction while the thermometer reading stays steady, and change the receiver when it starts to rise.
- Supporting the glassware. Clamp the flask neck and the condenser to a retort stand. Hold each joint with a joint clip of the right size.
- Teaching fractionation. Students watch the ring of condensing vapour climb slowly up the column, then compare the boiling ranges of the fractions they collect.
Frequently Asked Questions
When should I choose the 600 mm column over the 360 mm one?
Choose the longer column when the liquids boil close together, because the vapour gets more length to separate. The shorter column runs faster and holds back less liquid, so it suits wider gaps in boiling point and small volumes.
Should the Vigreux column be insulated?
Yes, for slow runs or liquids with higher boiling points. Wrap it loosely in glass wool and then foil, so draughts do not cool it unevenly. Leave a narrow gap to watch the vapour rise.
What is flooding and how do I stop it?
Flooding is liquid collecting in the column and blocking the rising vapour. It comes from heating the flask too hard. Turn the heat down until the liquid drains back into the flask, then raise it slowly again.
How is a Vigreux column different from a packed column?
A Vigreux column has glass indentations instead of packing, so it holds back less liquid and is easy to clean. A packed column has more surface and separates closer-boiling liquids, but more liquid stays in the packing.
Can fractional distillation separate every liquid mixture?
No. Some mixtures form an azeotrope, which boils at a fixed temperature and with a fixed composition. Distillation cannot take the separation past that point, however long the column is.
How should the column be cleaned after use?
Rinse it with a little acetone or another suitable solvent, then with water. Let it drain and dry standing upright. Before the next run, look along the indentations for chips or cracks.
