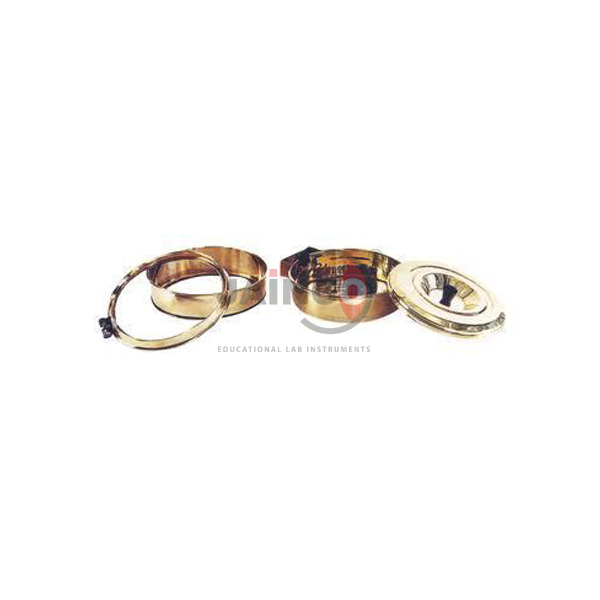

Dry Sieve Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-GT-9861
The Dry Sieve Test Apparatus (SKU JA-GT-9861) determines the apparent opening size (AOS), also called equivalent opening size (EOS), of geotextiles - an index of the largest openings through the fabric. The geotextile is clamped in a sieving frame in place of a wire mesh, and rounded particles of known sizes are sieved through it to find the size for which 5% or less by weight passes. Pore size controls how well a geotextile retains soil. It is supplied by JaincoLab for geosynthetics laboratories.
Specifications
The apparatus holds the geotextile in a sieving frame with a special clamping arrangement for dry sieving of graded rounded particles; frame size, shaker and particle fractions are not listed in the product data and are confirmed on the quotation.
| Product | Dry Sieve Test Apparatus |
| SKU | JA-GT-9861 |
| Property | Apparent opening size (AOS) / equivalent opening size (EOS) |
| Method | Dry sieving of rounded particles through the geotextile |
| Criterion | Particle size for which 5% or less by weight passes |
| Specimen holding | Sieving frame with special clamping arrangement |
Experiments with the dry sieve AOS apparatus
Students sieve successive particle fractions through the clamped geotextile, weigh what passes and identify the fraction at which 5% or less passes to report the AOS.
- Apparent opening size of geotextiles
- Soil retention assessment for filter design
- Relative comparison of geotextile products
- Quality control of filter fabrics
- Geosynthetics practicals
Scope of supply and ordering
This listing covers the dry sieve test apparatus with clamping frame as described. Accessories, spares and quantities are confirmed on the quotation. Sieve shaker and graded glass beads are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Dry Sieve Test Apparatus are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What does the test measure?
The apparent opening size (AOS) of a geotextile.
How is the geotextile held?
In a sieving frame, in place of a wire mesh, using a special clamping arrangement.
How is the AOS defined?
By the particle size for which 5% or less by weight passes through the fabric.
