Funicular Polygon and Forces Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-ELA-5515

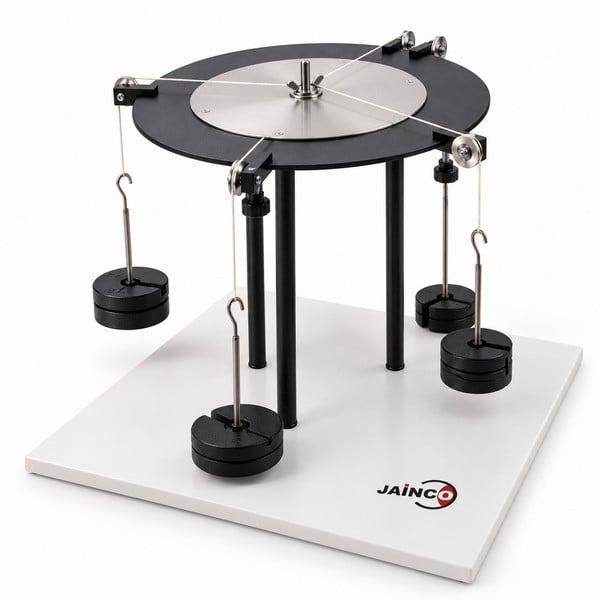

The Funicular Polygon and Forces Apparatus (SKU JA-ELA-5515) is a statics experiment supplied by JaincoLab for showing the conditions of equilibrium of three or more coplanar forces. Up to five loads are applied through cords over pulleys that can be set at different angular positions round a pulley table, acting at a point, on a circular disc or on a rectangular lamina. The lines of action are recorded by drawing along the weighted cords on paper fixed to the table, and the measured forces are compared with the graphical constructions.
Specifications
The unit is self-contained and bench mounted, with the features listed below.
| Product | Funicular Polygon and Forces Apparatus |
| SKU | JA-ELA-5515 |
| Mounting | Bench mounted, self-contained |
| Loads | Up to five, applied through pulleys at adjustable angular positions |
| Shapes | Point, circular disc and rectangular lamina |
| Force measurement | Direct |
| Recording | Lines of action drawn along the cords on paper fixed to the pulley table |
| Documentation | Instruction manual with procedure and typical results |
Experiments
- Triangle of forces for three concurrent coplanar forces
- Polygon of forces for more than three concurrent coplanar forces
- Link (funicular) polygon for three or more non-concurrent coplanar forces
- Comparing experimental and graphical results for a disc and a rectangular shape
Scope of supply and ordering
The apparatus is supplied by JaincoLab with its instruction manual; weights, quantity and packing are confirmed on the quotation.
Frequently asked questions
How many forces can be applied?
Up to five loads, each through a pulley set at the chosen angular position.
Which shapes can the forces act on?
A point, a circular disc or a rectangular lamina.
How are the lines of action recorded?
By drawing along the weighted cords onto paper attached to the pulley table.
Related products
Statics and mechanics apparatus is in the educational laboratory apparatus range.
Request a quote
Ask for a quotation on the Funicular Polygon and Forces Apparatus (JA-ELA-5515) through the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
