Hand Microtome External Milled Knob Manufacturer,Supplier and Exporter in India

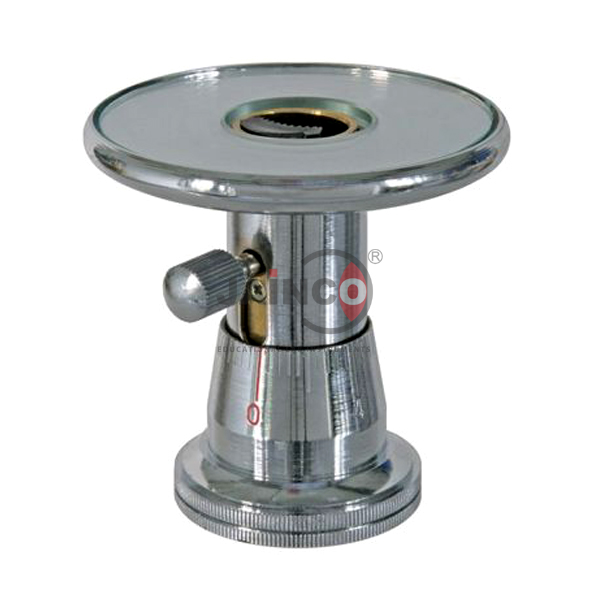

Hand Microtome External Milled Knob

Product Code : JC-BE-4452

This hand microtome holds a specimen upright in its tube and raises it with an external milled knob. Students then slice thin, even sections with a razor drawn across the top. It takes a sample section of up to 20 mm and cuts down to 10 microns. It is used on plant stems, roots, leaves and soft animal tissue.

Specifications of the hand microtome with external milled knob

Product codeJC-BE-4452
TypeHand-held section cutter, used with a razor
Maximum sample section20 mm
Minimum cut thickness10 microns
Thickness settingMicrometer scale of 50 divisions, 10 microns each
FeedExternal milled knob
SupplyComplete in case
Not includedRazor, pith or carrot support pieces, stains and slides
ManufacturerJaincoLab, Ambala, India

Using the hand microtome in plant anatomy practicals

  • Transverse sections of dicot and monocot stems and roots. Wedge the stem in a piece of pith or carrot, load it into the tube and cut with a Microtome Razor drawn across the top.
  • Collecting and staining sections. Float the cut sections into water in a Watch Glass, stain them, and pick out the thinnest, most even ones.
  • Mounting a temporary slide. Lay a section in a drop of glycerin on a slide and lower a Cover Slip over it. Study it under a Student Compound Microscope.
  • Leaf sections. Hold a strip of leaf between two halves of the support piece to show the mesophyll and the vascular bundles.

Frequently Asked Questions

Why is the stem packed in pith or carrot before cutting?
A thin or soft stem bends away from the razor if it stands alone in the tube. A firm support such as pith or carrot holds it upright. The razor then cuts the support and the stem together in one clean slice.

How do I set the thickness of each section?
Turn the external milled knob. Each division on the micrometer scale raises the specimen by 10 microns. Turn the knob by the same number of divisions before every cut, and the sections come out at an even thickness.

Why do my sections come out torn, wedge-shaped or uneven?
Usually the razor is dull or the cut is made at an angle. Hone or change the razor, keep it flat on the top of the microtome, and draw it across in one smooth stroke. Short sawing strokes tear soft tissue.

Should the specimen and razor be kept wet while cutting?
Yes. Wet the razor and the top of the specimen with water before each stroke. A wet edge slides through the tissue more easily, and the sections float off instead of drying and curling on the blade.

How do I stop air bubbles forming under the cover slip?
Touch one edge of the cover slip to the slide and lower it slowly with a needle. The mounting liquid then pushes the air out ahead of it. Blot any extra liquid from the edges with filter paper.

Other microtomes in the range

See the Biology Equipment range and more biology equipment from JaincoLab, a biology lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
