Hydraulic Jack Manufacturer,Supplier and Exporter in India
Product Code : JA-CT-9908

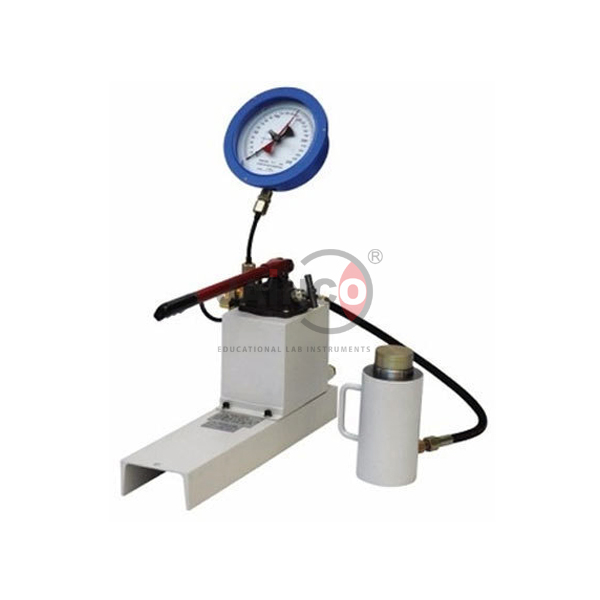

The Hydraulic Jack (SKU JA-CT-9908) applies heavy loads in the field and the laboratory. Uses include applying loads during field investigations, finding the load-carrying capacity of piles, tensioning wires in prestressed structures and loading members of a structure to study their deformation. Each jack comes complete with a manually operated pumping unit fitted with a Bourdon tube load gauge and a high-pressure flexible hose. All jacks have 50 mm piston travel, and jacks up to 1000 kN have retraction springs. It is supplied by JaincoLab for structural and geotechnical testing.
Specifications
Jacks are listed from 50 kN to 3000 kN, each with hand pump, Bourdon tube load gauge and high-pressure hose, with 50 mm piston travel and retraction springs up to 1000 kN; jack dimensions and gauge divisions are not listed in the product data and are confirmed on the quotation.
| Product | Hydraulic Jack |
| SKU | JA-CT-9908 |
| Capacities | 50, 100, 250, 500, 1000, 2000 and 3000 kN |
| Pumping unit | Manually operated, with Bourdon tube load gauge |
| Hose | High-pressure flexible hose |
| Piston travel | 50 mm (all jacks) |
| Retraction | Springs on jacks up to 1000 kN |
Applications of the hydraulic jack
Engineers place the jack under a reaction frame or load beam, pump to raise the load in stages and read each load on the Bourdon gauge while settlements or deflections are recorded.
- Pile load tests in the field
- Plate load and field loading tests
- Tensioning wires in prestressed members
- Load tests on structural members
- Structural and geotechnical practicals
Scope of supply and ordering
This listing covers one hydraulic jack in the capacity chosen, with hand pump, load gauge and hose. Accessories, spares and quantities are confirmed on the quotation. Reaction frame and calibration documents are confirmed on the quotation.
MOQ, lead time and packing for the Hydraulic Jack are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
Which capacities are listed?
50, 100, 250, 500, 1000, 2000 and 3000 kN.
What is the piston travel?
50 mm on all jacks.
How is the load read?
On a Bourdon tube load gauge fitted to the hand pumping unit.
Related products
See the complete concrete testing equipment range for related concrete and cement testing apparatus.
Request a quote
Request pricing for the Hydraulic Jack (SKU JA-CT-9908) through the JaincoLab contact page, stating the quantity and where it is to be delivered, or write to [email protected]. For tender or project supply, see our tenders page.
