Multi Pump Test Rig Manufacturer,Supplier and Exporter in India
Product Code : JA-HAP-8924

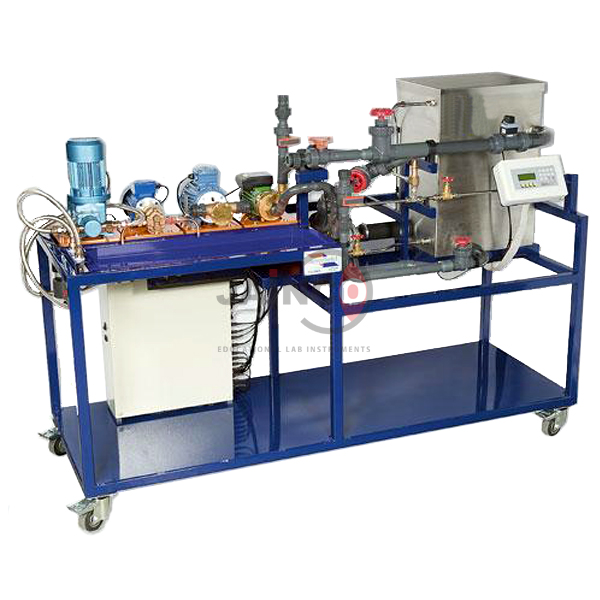

The multi pump test rig is a mobile, self-contained rig with the services and instrumentation to determine the characteristic curves of up to eight different pumps at different speeds. A centrifugal pump and a gear pump are fitted as standard, and flow, pressure head, suction head and motor torque are measured electronically, with data logging and educational software included (SKU JA-HAP-8924).
Specifications
Standard equipment and options as listed:
| Product | Multi Pump Test Rig |
| SKU | JA-HAP-8924 |
| Pumps supplied | Centrifugal pump and gear pump |
| Optional pumps | Axial, flexible impeller, turbine, diaphragm and plunger pumps; second centrifugal pump |
| Pump positions | 5, with 4 active at the same time |
| Measurement | Electronic: flow, pressure head, suction head, motor torque |
| Suction control | Control valve upstream of each pump (except the axial pump) |
| Speed setting | From a PC (PC not supplied) |
| Software | Data logging and educational software included; mimic diagram of the pump on test |
| Option | Volumetric flow measurement system for reciprocating pumps |
Pump characteristics that can be plotted
- Rotodynamic pumps: pressure head, power absorbed and pump efficiency against flow
- Positive displacement pumps: flow, power absorbed and volumetric efficiency against pressure head
- Effect of suction loss on performance, using the upstream control valves
- Series and parallel operation, with the second centrifugal pump option
Scope of supply and ordering
The listing covers the rig with its centrifugal and gear pumps, instrumentation and software, supplied by JaincoLab; the other pumps, the reciprocating-pump flow system and the PC are extras. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
Which pumps come with the rig as standard?
A centrifugal pump and a gear pump; axial, flexible impeller, turbine, diaphragm, plunger and a second centrifugal pump are available as accessories.
How many pumps can be tested at once?
The rig has five pump positions, four of which can be active at the same time.
Is a computer needed?
Yes, a PC (not supplied) is used to set the pump speed and runs the included data logging software.
Can pumps be run in series or parallel?
Yes, with the optional second centrifugal pump.
