Ohms Law Series and Parallel Circuits Manufacturer,Supplier and Exporter in India
Product Code : JA-AET-1471

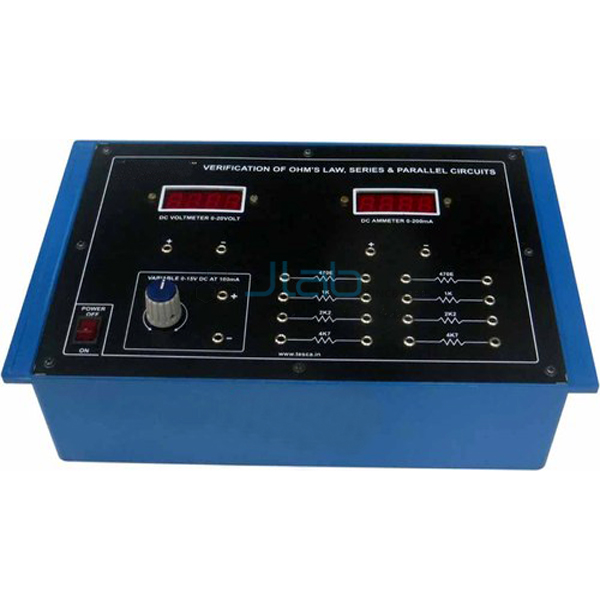

The Ohm's law and series-parallel circuits trainer is used to verify Ohm's law and to study series and parallel resistive circuits. It has a 0-15 V DC, 100 mA continuously variable regulated supply, and a 3½ digit digital DC voltmeter (20 V) and current meter (200 mA) are listed with it (SKU JA-AET-1471).
Specifications
Listed parts and ratings:
| Product | Ohms Law Series and Parallel Circuits |
| SKU | JA-AET-1471 |
| DC supply | 0-15 V DC at 100 mA, continuously variable, regulated |
| Meters listed | Digital DC voltmeter, 3½ digit, 20 V; digital DC current meter, 3½ digit, 200 mA |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Documentation | Operating instructions with book references |
Experiments
The listed objects are:
- Verification of Ohm's law
- Study of series circuits
- Study of parallel circuits
Scope of supply and ordering
The listing covers the Ohm's law board with patch cords and operating instructions, supplied by JaincoLab; whether the two digital meters are built in or supplied separately is confirmed on the quotation. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What experiments does the Ohm's law board cover?
Verification of Ohm's law and the study of series circuits and parallel circuits.
What supply is built in?
A 0-15 V DC, 100 mA continuously variable regulated supply.
