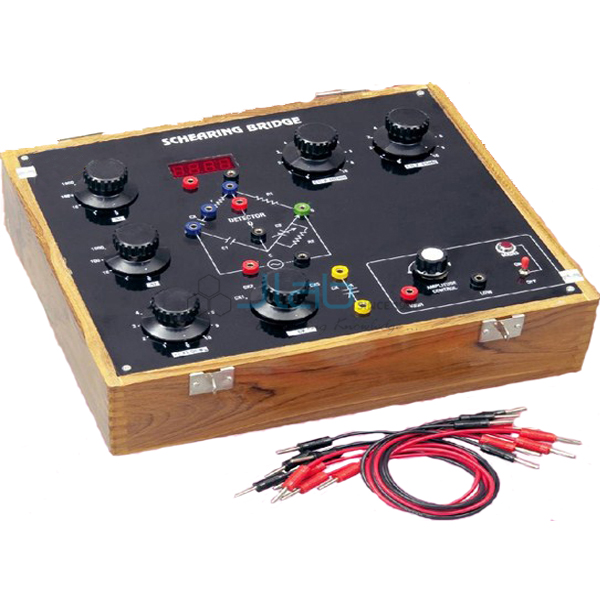

Schering Bridge

Product Code : JA-SI-8080
Jaincolab is a leading Schering Bridge Manufacturer,and suppliers in India, Schering Bridge Manufacturer,and suppliers in South Africa, Schering Bridge Algeria (Algiers), Schering Bridge Angola (Luanda), Schering Bridge Argentina (Buenos Aires), Schering Bridge Armenia (Yerevan), Schering Bridge Australia (Canberra), Schering Bridge Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Schering Bridge
Schering Bridge is used to measure the unknown value of Capacitance.
The instrument has following inbuilt parts fitted in Teak Wood Case.

AC Source:
The Bridge consist of sine wave signal of 1KHZ.
Two sockets are provided for the output of AC signals.
The Amplitude of AC switch indicating lamp is provided on the bakelite board.

Detector:
For detecting small AC signals in the output, Null Detector is in-built with digital display

Circuit Diagram:
4mm socket are provided for making connections.
The circuit layout on the board is quite spread out to facilitate convenient working & clear understanding.

Unknown Value:
Five unknown value are provided on the board selected by a Rotary switch.

R1 R2:
Ratio Dial having step of 1, 10, 100 and 1000 Ohms.

R:
Decade dial of x1 ohms.

C1:
Two Decade dial of x0.001 mfd & x0.01mfd.

C2:
Internally fixed of value 0.001mfd.
