Series and Parallel Pump Test Set Manufacturer,Supplier and Exporter in India
Product Code : JA-ACAR-9648

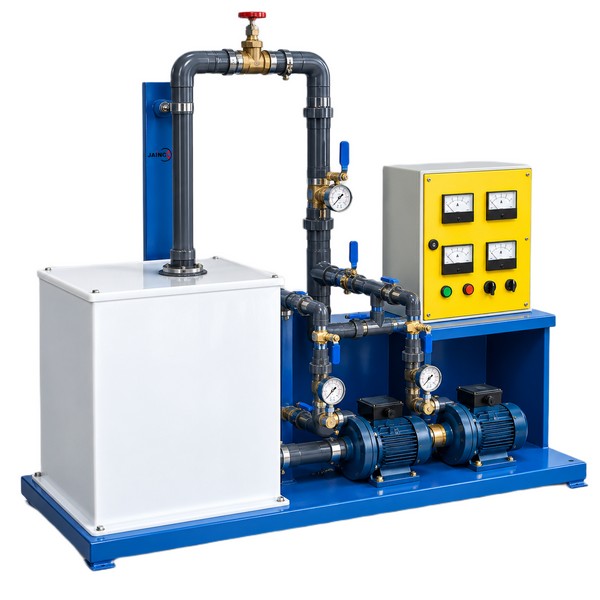

The Series and Parallel Pump Test Set (SKU JA-ACAR-9648) is a series parallel pump test rig in a self-contained bench-top unit with two independent sets of centrifugal pumps. By setting the flow control valves, each pump can run alone or the two can be connected in series or parallel, and flow rate, head, power input and efficiency are measured at various speeds. Electronic sensors feed the data to a PC through the included data acquisition and analysis software. It is supplied by JaincoLab.
Specifications
The unit has two independent centrifugal pump sets, flow control valves for single, series or parallel running and electronic sensors with PC software; pump ratings and speed range are confirmed on the quotation.
| Product | Series and Parallel Pump Test Set |
| SKU | JA-ACAR-9648 |
| Type | Series and parallel pump test set, bench-top |
| Pumps | Two independent centrifugal pump sets |
| Configurations | Single, series or parallel, selected by flow control valves |
| Measurements | Flow rate, head, power input and efficiency at various speeds |
| Data acquisition | Electronic sensors; PC data acquisition and analysis software included |
| Pump ratings and speed range | Confirmed on the quotation |
Experiments on the series and parallel pump test set
The test set produces the pump curves students need to see how head and flow change when pumps are combined in series or in parallel.
- Performance curves of a single centrifugal pump
- Series operation: head addition at a given flow
- Parallel operation: flow addition at a given head
- Pump efficiency and power input at various speeds
- Computer-based data acquisition and analysis in fluid mechanics labs
Scope of supply and ordering
The listing covers the bench-top test set with two centrifugal pump sets, flow control valves, electronic sensors and data acquisition and analysis software. The PC is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of test sets and whether a PC is needed and the delivery destination. Single units and fluid mechanics lab orders are supplied.
Frequently asked questions
Can the pumps run separately?
Yes. Each pump can operate individually or the two can be connected in series or parallel.
What is measured?
Flow rate, head, power input and efficiency at various speeds.
Is software included?
Yes. Data acquisition and analysis software is included for a PC.
