Spectrophotometer 400-1000nm Manufacturer,Supplier and Exporter in India

Spectrophotometer 400-1000nm

Product Code : JA-LE-8252

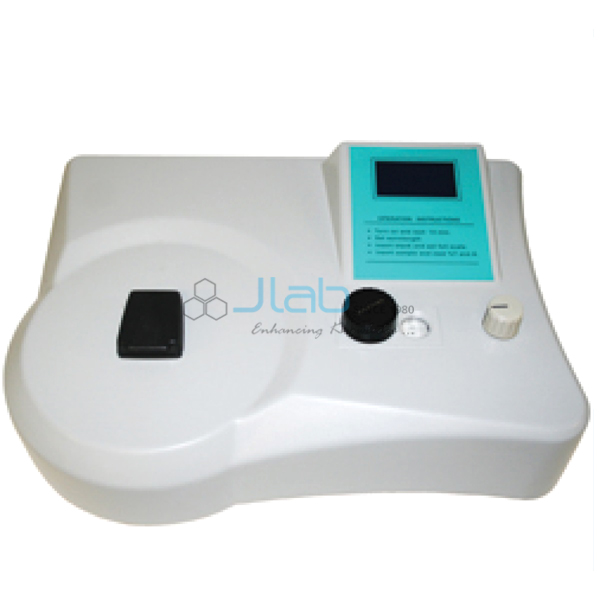

The Spectrophotometer 400-1000nm (SKU JA-LE-8252) is a single-beam visible spectrophotometer for school, college and general laboratory work. A large graphic LCD gives readings in absorbance and transmittance, and USB and RS232 ports link it to a Windows computer. The sample compartment accepts 13 mm round glass tubes or 10 mm square cuvettes, and built-in secondary filters reduce stray light. It is supplied by JaincoLab.

Specifications

Optical and electrical values as listed:

Product Spectrophotometer 400-1000nm
SKU JA-LE-8252
Wavelength range 400 to 1000 nm
Bandwidth 15 nm
Optical system Single beam, grating 1200 lines/mm
Wavelength accuracy / repeatability +/-2 nm / +/-1 nm
Display Graphic LCD; absorbance and transmittance
Stray energy Below 1% at 400 nm
Photometric range 0-125 %T; -0.3 to 2.0 A
Photometric accuracy +/-2 %T
Light source Tungsten halogen lamp, 6 V / 10 W
Outputs USB (PC link) and RS232
Power 90-240 V AC, 50-60 Hz, 50 VA
Size 18 x 11 x 6.5 in (W x D x H)

Uses of the visible spectrophotometer

Across 400 to 1000 nm it handles routine work such as:

  • Absorbance and transmittance readings in school and college practicals
  • Colorimetric measurements in round tubes or square cuvettes
  • Logging results to a PC over USB or RS232 for records

Scope of supply and ordering

Each unit comes with a 13 mm round tube holder, a 10 mm square cuvette adapter, a box of twelve round glass cuvettes, a dust cover and a user manual; the optional software is quoted separately, with quantity, packing and lead time.

Frequently asked questions

Which sample cells can be used?
Round 13 mm optical glass tubes or 10 mm pathlength square cuvettes, using the supplied adapter.

Can readings be transferred to a computer?
Yes, through the USB port or the RS232 port to a Windows-based computer; optional software adds further analysis and documentation.

What readings does it display?
Absorbance and transmittance on a large graphic LCD.

Related products

Compare other spectrophotometers in our laboratory equipment range.

Request a quote

Request a quotation for the Spectrophotometer 400-1000nm on our contact page. For tender or project supply, see our tenders page.
