Student Kymographs Digital Manufacturer,Supplier and Exporter in India
Product Code : JA-SKD-2348

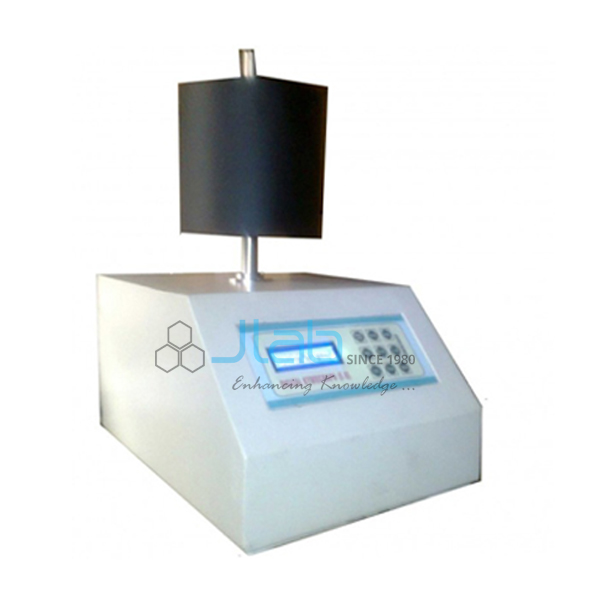

The Student Kymographs Digital (SKU JA-SKD-2348) is a microprocessor-controlled recording drum, or Sherrington drum, for pharmacology and physiology practicals, on which tissue and muscle responses are traced against time. This digital student kymograph selects its speed digitally, shows all functions on a backlit 16 x 2 LCD, is driven by a stepper motor under microprocessor control and runs on 12 V, 1 A. It is supplied by JaincoLab.
Specifications
The kymograph has a backlit 16 x 2 LCD that shows all functions at once with selection through the display, digital speed selection with listed speeds from 0.12 to 1.25 mm per second, a stepper motor run by a microprocessor program, a 12 V 1 A supply rating, a chrome-plated and powder-coated body and a self-lubricating gear.
| Product | Student Kymographs Digital |
| SKU | JA-SKD-2348 |
| Control | Microprocessor |
| Display | 16 x 2 LCD with backlight; all functions shown, selection through the display |
| Speed selection | Digital |
| Speeds listed | Include 0.12, 0.25, 0.75, 1.00 and 1.25 mm per second; the full speed set is confirmed on the quotation |
| Drive | Stepper motor run by a microprocessor program |
| Power | 12 V, 1 A |
| Body | Chrome plated and powder coated |
| Gear | Self-lubricating |
Applications of the digital student kymograph
The digital student kymograph is used in the same practicals as a conventional recording drum, such as muscle twitch, nerve-muscle and isolated tissue experiments, with the drum speed selected digitally and shown on the display so that each group can record at the setting the practical calls for.
- Recording isolated muscle and tissue responses in B.Pharm experimental pharmacology practicals
- Muscle twitch and nerve-muscle experiments in physiology classes
- Slow-speed recordings of tissue responses to drugs over several minutes
- Equipping student benches in pharmacy, medical and life-science colleges
Scope of supply
The listing covers the digital kymograph with its microprocessor control, LCD and stepper-motor drive as described; writing levers, stands, recording paper and other accessories are separate items, and the power supply arrangement is confirmed with the order. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of kymographs, the accessories and the delivery destination. JaincoLab supplies single units for a department, bench sets for new pharmacy and medical colleges and export orders to Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
How is the drum speed set?
The speed is selected digitally and shown on the backlit 16 x 2 LCD, which displays all functions at once.
Which speeds are listed?
Listed speeds include 0.12, 0.25, 0.75, 1.00 and 1.25 mm per second; the full speed set is confirmed on the quotation.
What power does it need?
It is rated at 12 V and 1 A; the supply arrangement is confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-SKD-2348, the number of kymographs, the levers and accessories you need and the delivery destination.
Related products
For levers, stands and tissue holders, browse all pharmacology lab equipment from JaincoLab.
Request a quote
To order the Student Kymographs Digital, send the number of units, the accessories needed and the delivery destination through the JaincoLab contact page or email [email protected].
