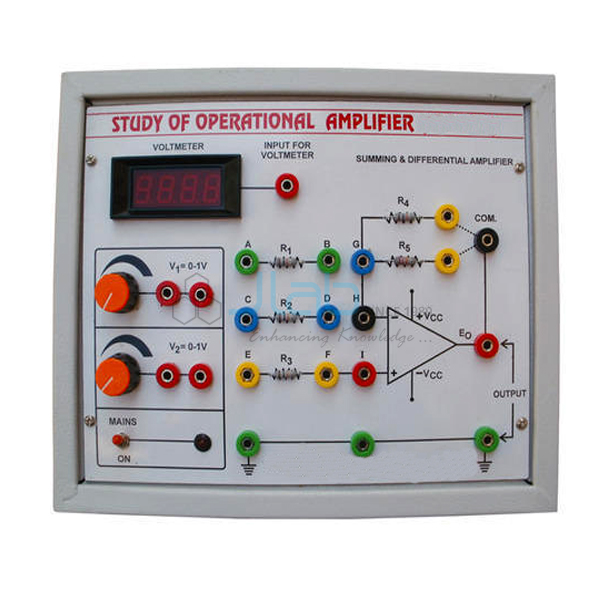

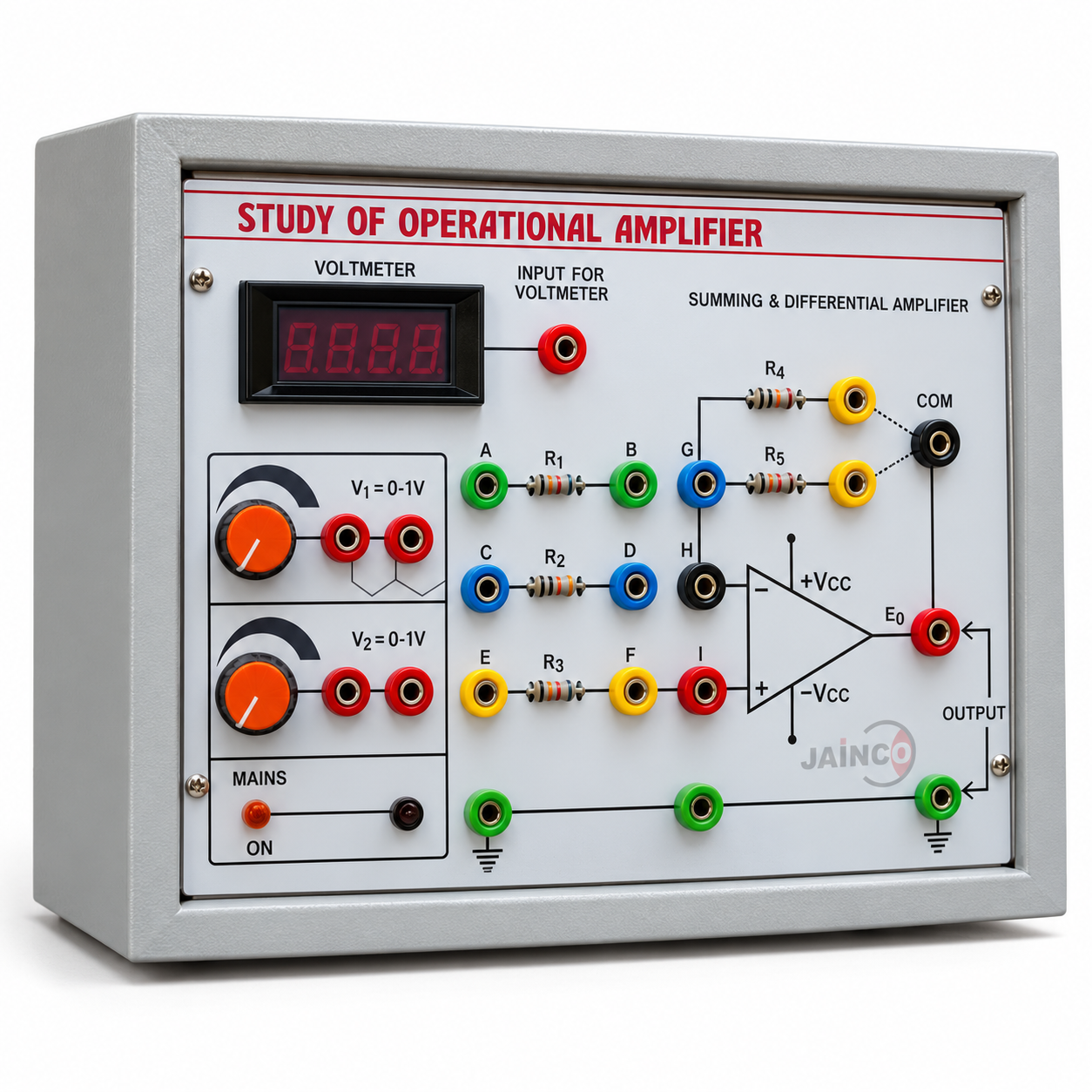

Study Characteristics of Operational Amplifier Manufacturer,Supplier and Exporter in India
Product Code : JA-COA-1136
The Study Characteristics of Operational Amplifier apparatus (SKU JA-COA-1136) is used to measure the practical limits of an IC 741 op-amp: input offset current, input offset voltage, slew rate and bandwidth, together with null balancing of the output. The IC is wired inside with a range of resistors and capacitors, a +/-15 V DC regulated supply and two round meters are built in, and the connections are brought out to 4 mm sockets.
Specifications
The listing gives these values:
| Product | Study Characteristics of Operational Amplifier |
| SKU | JA-COA-1136 |
| Characteristics studied | Input offset current, input offset voltage, slew rate, bandwidth, null balancing |
| IC | 741, wired internally with resistors and capacitors |
| Power supply | +/-15 V DC regulated |
| Meters | Two round meters |
| Connections | 4 mm sockets |
| Optional accessories | DMM, AF function generator TE-93, CRO TE-96 |
Scope of supply and ordering
The unit is supplied with its supply and two meters; the DMM, generator and CRO are optional. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which op-amp characteristics can be measured?
Input offset current, input offset voltage, slew rate and bandwidth, plus null balancing.
Which op-amp is used?
An IC 741, wired internally with resistors and capacitors.
What is needed for the slew rate and bandwidth readings?
A signal source and a CRO; the listing offers the TE-93 generator and TE-96 CRO as options.
