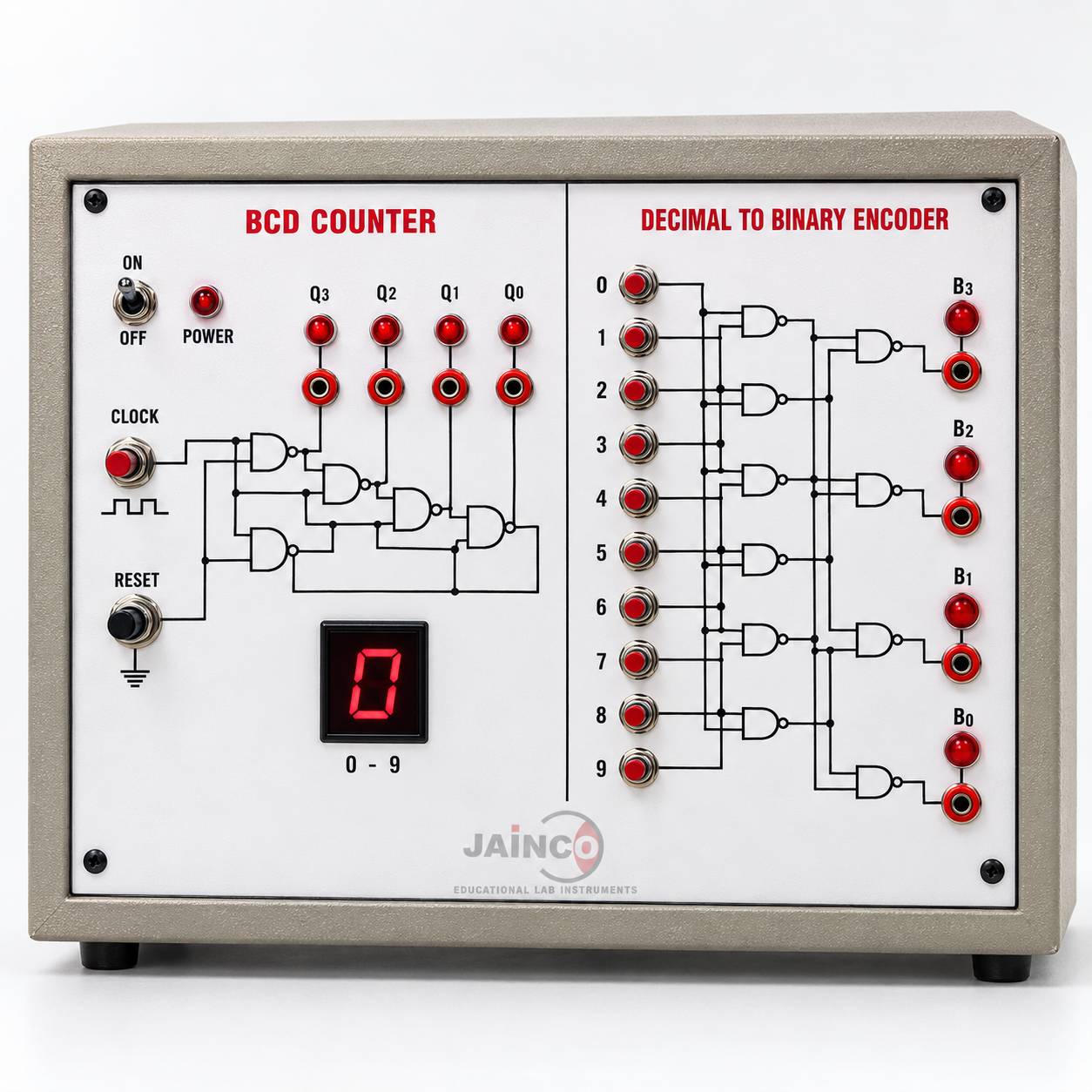

Study of 4 Bit BCD Counter and Decimal to Binary Encoder using NAND Gates Manufacturer,Supplier and Exporter in India
Product Code : JA-DEECP-1175
The Study of 4 Bit BCD Counter and Decimal to Binary Encoder using NAND Gates apparatus (SKU JA-DEECP-1175) converts a decimal input line into its 4-bit BCD, or 8421, binary equivalent. The whole encoder is built from NAND gates, using their universal-gate property. It can be compared with the IC 7490 based BCD counter apparatus, which performs the counting function with an integrated circuit. Supply, input and indicator details are stated on the quotation.
Specifications
The listing gives the function only:
| Product | Study of 4 Bit BCD Counter and Decimal to Binary Encoder using NAND Gates |
| SKU | JA-DEECP-1175 |
| Function | Decimal input to 4-bit BCD (8421) binary output |
| Gates | NAND gates only |
| Supply, inputs and indicators | Confirmed on the quotation |
Scope of supply and ordering
Supply, input switches, indicators, quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the NAND gate encoder convert?
A decimal input into its 4-bit BCD (8421) binary code.
Is there an IC-based version?
Yes, the IC 7490 BCD counter and encoder apparatus is listed separately.
