Supplemental Sieves Manufacturer,Supplier and Exporter in India
Product Code : JA-S-10024

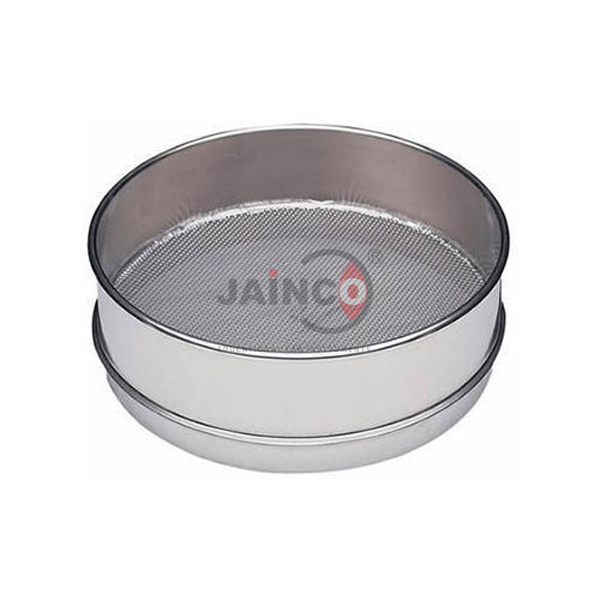

The Supplemental Sieves (SKU JA-S-10024) are 3 inch all stainless test sieves in metric opening sizes that fall between the main sieves of a stack, giving a finer breakdown of particle size. These supplemental sieves are listed from 9.0 mm down to 1.80 mm in full height, with several sizes also in half height to keep a tall stack compact. They are supplied by JaincoLab for soil, aggregate, mineral and quality control laboratories.
Specifications
All sieves are 3 inch, all stainless; full height openings are 9.0, 7.1, 5.0, 4.5, 3.55, 3.15, 2.5, 2.24 and 1.80 mm, and half height is listed for 5, 4.5, 3.55, 3.15, 2.5 and 2.24 mm.
| Product | Supplemental Sieves |
| SKU | JA-S-10024 |
| Diameter | 3 inch |
| Construction | All stainless |
| Full height openings | 9.0, 7.1, 5.0, 4.5, 3.55, 3.15, 2.5, 2.24, 1.80 mm |
| Half height openings | 5, 4.5, 3.55, 3.15, 2.5, 2.24 mm |
Applications of the supplemental sieves
Adding intermediate sizes to a sieve stack shows the particle size curve in more detail between the main sieves.
- Detailed grain size analysis of soils and sands
- Aggregate grading between standard sieve sizes
- Particle size control of minerals, powders and granules
- Teaching sieve analysis in engineering and geology courses
Scope of supply and ordering
The listing covers individual 3 inch all stainless supplemental sieves in the openings and heights listed. Lids, receivers and sieve shakers are separate items confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the sizes and number of sieves and the delivery destination. Single sieves, sets and bulk institutional and tender quantities are supplied.
Frequently asked questions
What are supplemental sieves used for?
They add intermediate opening sizes between the main sieves of a stack for a finer size breakdown.
Which openings are listed?
9.0, 7.1, 5.0, 4.5, 3.55, 3.15, 2.5, 2.24 and 1.80 mm.
Are half height sieves available?
Yes, in 5, 4.5, 3.55, 3.15, 2.5 and 2.24 mm.
Related products
This sieve is listed in the JaincoLab sieving range.
Request a quote
To order the Supplemental Sieves, send each opening and height, number of sieves and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-S-10024. For tender or project supply, see our tenders page.
