Triaxial Cells For Rocks Manufacturer,Supplier and Exporter in India
Product Code : JA-RT-9856

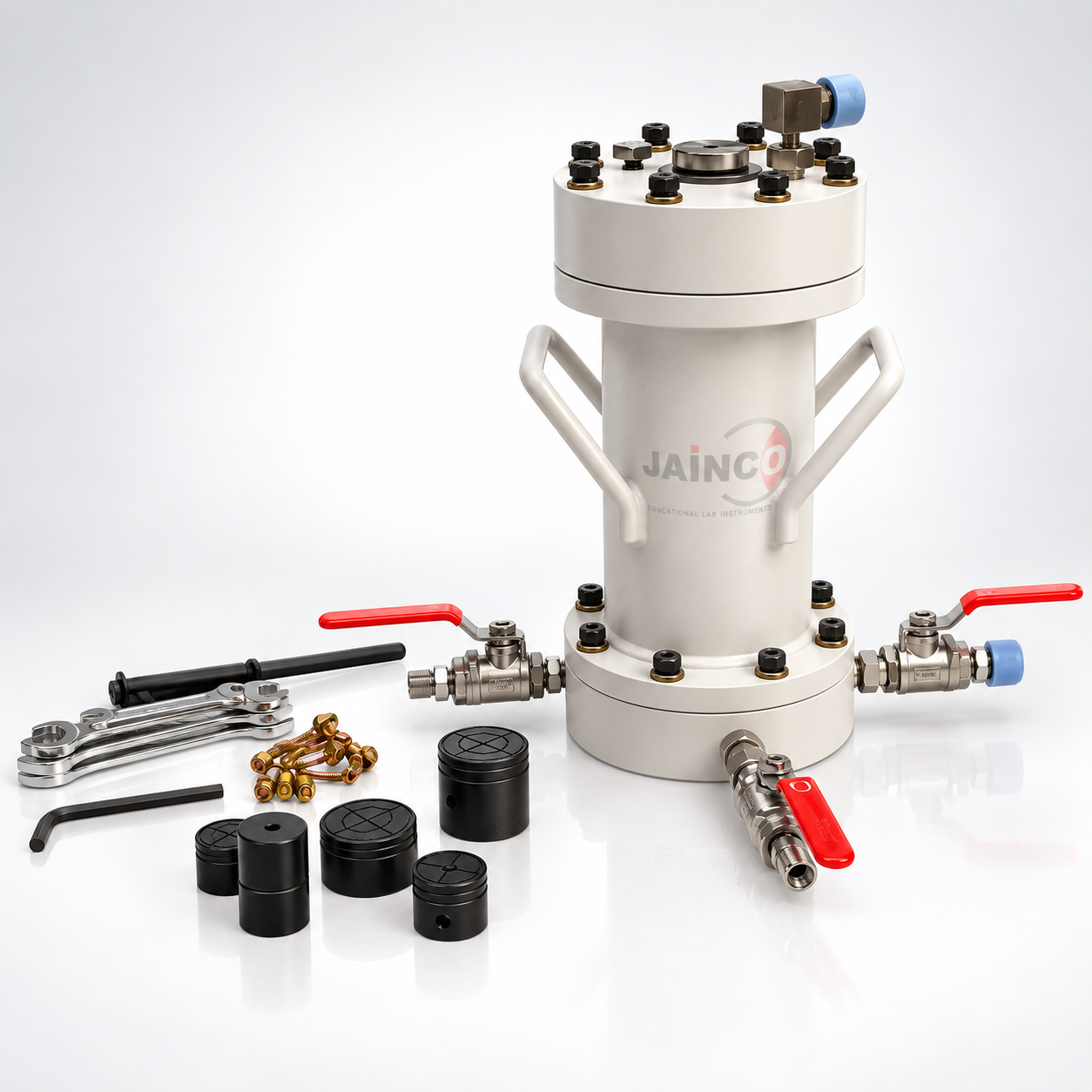

The Triaxial Cells For Rocks (SKU JA-RT-9856) are nickel-plated triaxial cells designed to withstand a lateral pressure of 150 bar (150 kg/cm²) for testing rock cores under confinement. They have hardened and ground pedestals and top loading pads with centring arrangements for different sample sizes, a spherically seated top loading pad and radial grooves on the lower pedestals. Four no-volume-change valves on the base serve pore pressure, top drainage, bottom drainage and cell pressure. It is supplied by JaincoLab for rock mechanics laboratories.
Specifications
The cell is nickel plated, rated for 150 bar lateral pressure, with hardened and ground pedestals and top pads, spherical seating, radially grooved lower pedestals and four no-volume-change base valves; sample sizes and dimensions are not listed in the product data and are confirmed on the quotation.
| Product | Triaxial Cells For Rocks |
| SKU | JA-RT-9856 |
| Lateral pressure | 150 bar (150 kg/cm²) |
| Finish | Nickel plated |
| Pedestals and pads | Hardened and ground, with centring for different sample sizes |
| Top loading pad | Spherical seating |
| Lower pedestal | Radial grooves |
| Base valves | 4 no-volume-change valves - pore pressure, top drainage, bottom drainage, cell pressure |
Experiments with the rock triaxial cell
Students seat a core between the pedestals, apply cell pressure, measure pore pressure or drain through the base valves and load the specimen axially to failure.
- Triaxial compression tests on rock cores
- Drained and undrained tests with pore pressure measurement
- Strength envelopes at several confining pressures
- Rock mechanics research and teaching
- Mining and civil engineering practicals
Scope of supply and ordering
This listing covers the triaxial cell for the sample size ordered. Accessories, spares and quantities are confirmed on the quotation. Pressure system, load frame and transducers are confirmed on the quotation.
MOQ, lead time and packing for the Triaxial Cells For Rocks are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What lateral pressure can the cell take?
150 bar (150 kg/cm²).
Which valves are fitted?
Four no-volume-change valves for pore pressure, top drainage, bottom drainage and cell pressure.
Does it suit different sample sizes?
Yes, pedestals and pads have centring arrangements for different sample sizes.
Related products
- Triaxial Testing Outfit for Rocks
- Hoek Cell
- Constant Pressure System for Rocks
- Electronic Kit for Rock Triaxial Test
See the complete rock testing equipment range for related rock mechanics laboratory equipment.
Request a quote
Request pricing for the Triaxial Cells For Rocks (SKU JA-RT-9856) through the JaincoLab contact page, stating the quantity and where it is to be delivered, or write to [email protected]. For tender or project supply, see our tenders page.
