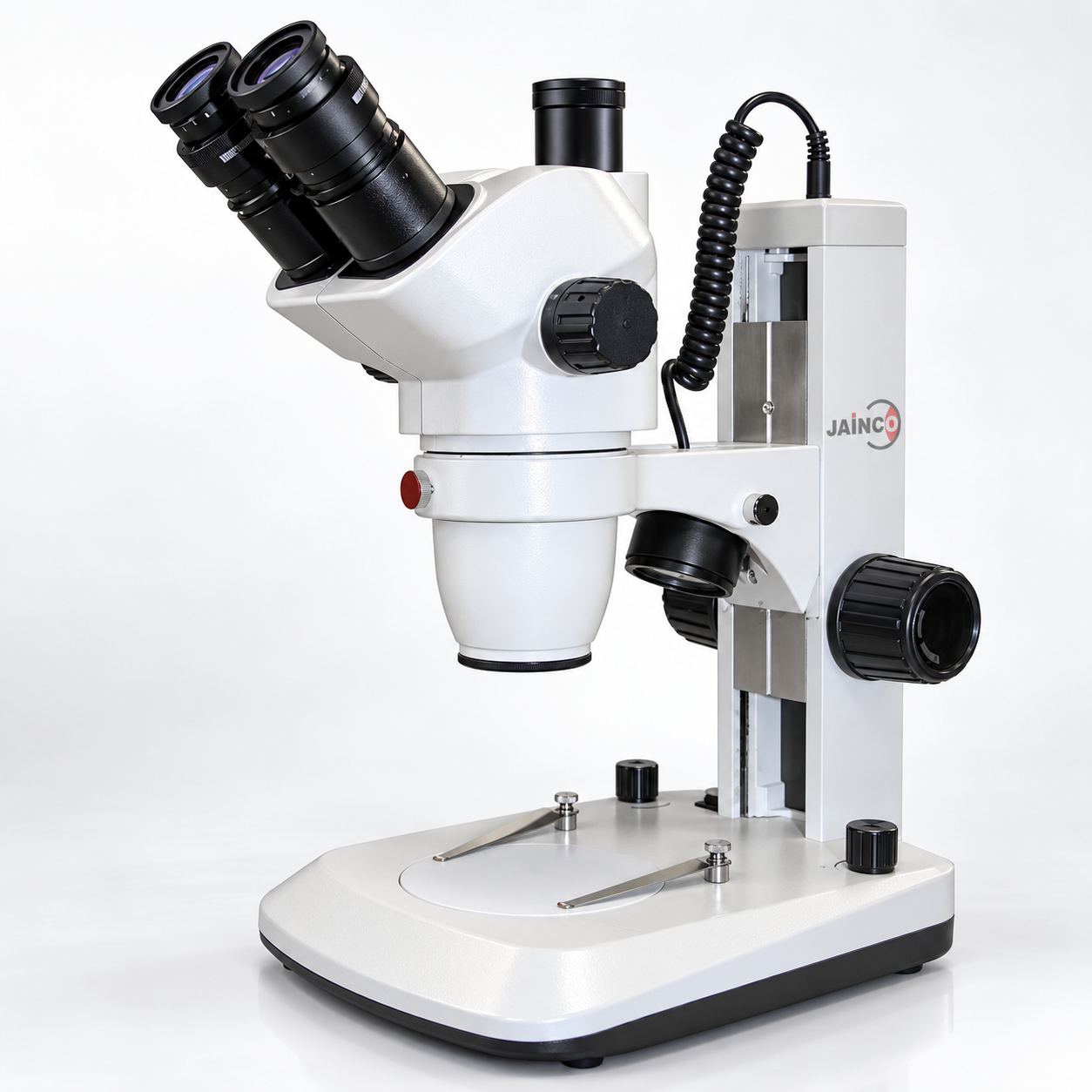

Trinocular Zoom Stereo Microscope 6.7x-45x Magnification Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8133
The Trinocular Zoom Stereo Microscope 6.7x-45x Magnification (SKU JA-M-8133) is a stereo zoom microscope on a long track stand, supplied by JaincoLab. Its 0.67x to 4.5x zoom with WF10x/22 mm eyepieces gives 6.7x to 45x, extendable to 3.4x to 180x with optional lenses, and the trinocular head splits light 50/50 to a camera interface. The long track and 105 mm working distance let this trinocular zoom stereo microscope handle both small and bulky samples.
Specifications
The product data lists a trinocular head with 50/50 split at 45 degrees rotating 360 degrees, 54 to 76 mm interpupillary distance, WF10x/22 mm high eyepoint eyepieces with +/-5 dioptre, a 0.67x to 4.5x parfocal zoom at 1:6.7, a 105 mm working distance and a camera interface.
| Product | Trinocular Zoom Stereo Microscope 6.7x-45x Magnification |
| SKU | JA-M-8133 |
| Magnification | 6.7x-45x; 3.4x-180x with auxiliary lens and optional eyepieces |
| Head | Trinocular, 50/50 split, 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Imaging | Interface for a digital camera |
| Eyepieces | WF10x/22 mm pair, high eyepoint, +/-5 dioptre on both |
| Zoom body | 0.67x-4.5x, ratio 1:6.7, parfocal |
| Working distance | 105 mm standard; 26-177 mm with optional auxiliary lens |
| Stand | Long track stand, large low-profile base |
Applications of the trinocular zoom stereo microscope
The long track stand raises or lowers the optics for tall or flat samples, the zoom moves smoothly between overview and detail, and the camera port records images, so it is used in biology research, electronics inspection and materials laboratories.
- Biological research specimens
- Electronics and semiconductor inspection
- Imaging through the camera port
- Materials and fracture surfaces
- Dissections and entomology
Scope of supply and ordering
One unit is one trinocular zoom stereo microscope with the listed head, WF10x/22 mm eyepieces, zoom body and long track stand. Lighting, camera, auxiliary lenses, optional eyepieces and quantities are confirmed on the quotation.
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnification does it give?
6.7x to 45x as standard, extendable to 3.4x to 180x with auxiliary lens and optional eyepieces.
Can a camera be attached?
Yes. The trinocular head has a 50/50 split with an interface for a digital camera; the camera is confirmed on the quotation.
What is the working distance?
105 mm as standard, from 26 mm to 177 mm with the optional auxiliary lens.
