Triple Scale DC Voltmeter Manufacturer,Supplier and Exporter in India

Triple Scale DC Voltmeter

Product Code : JA-GLE-8596

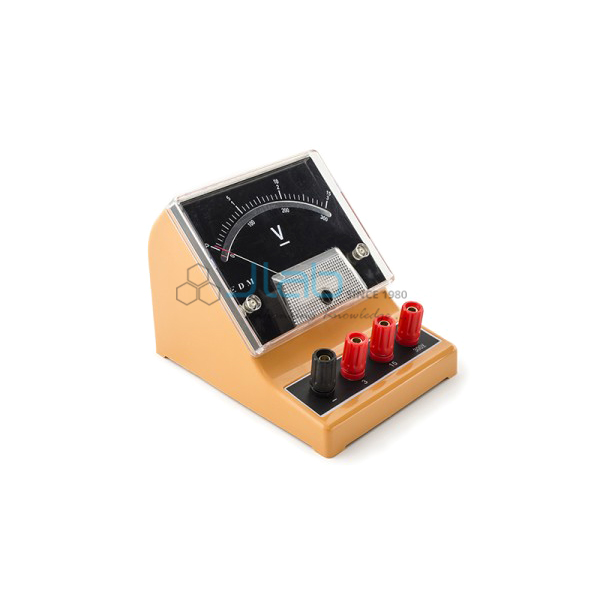

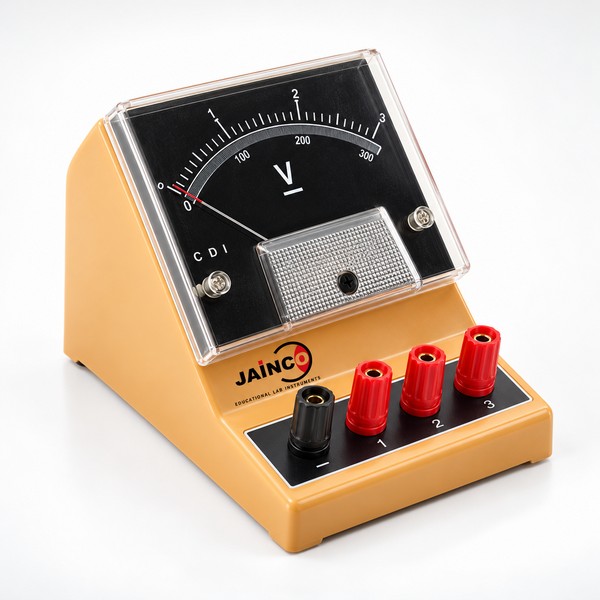

The Triple Scale DC Voltmeter (SKU JA-GLE-8596) is an easy-reading moving coil meter made by JaincoLab for measuring voltage in electricity practicals. It stands on a sturdy base, connects through 4 mm sockets and has three ranges, 0-3 V, 0-15 V and 0-300 V, read on a scale of about 65/70 mm with a 90° deflection.

Specifications

The listed measurements are:

ProductTriple Scale DC Voltmeter
SKUJA-GLE-8596
TypeMoving coil
Ranges0-3 V, 0-15 V, 0-300 V
Accuracy±2.5%
Terminals4 mm sockets
Scale length± 65/70 mm
Deflection angle90°
Overall size100-140 x 100 x 90-100 mm

Scope of supply and ordering

Voltmeters are made to order in the quantity you specify, with packing confirmed on the quotation.

Frequently asked questions

What ranges does the voltmeter have?
0-3 V, 0-15 V and 0-300 V.

How are leads connected?
Through 4 mm sockets.

What accuracy is listed?
±2.5% for the moving coil movement.

Related products

Electrical meters are in the JaincoLab general lab equipment range.

Request a quote

Ask for a quotation on the Triple Scale DC Voltmeter (JA-GLE-8596) using our contact page. For tender or project supply, see our tenders page.
