USB Digital Microscope with 2MP Camera Manufacturer,Supplier and Exporter in India
Product Code : JA-M-8141

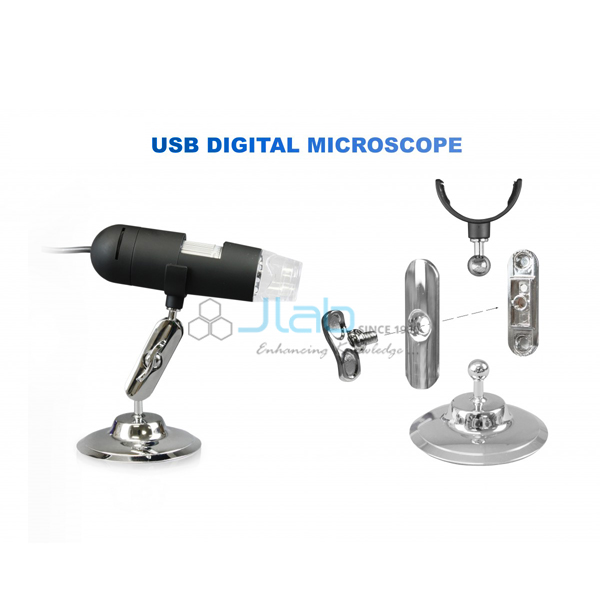

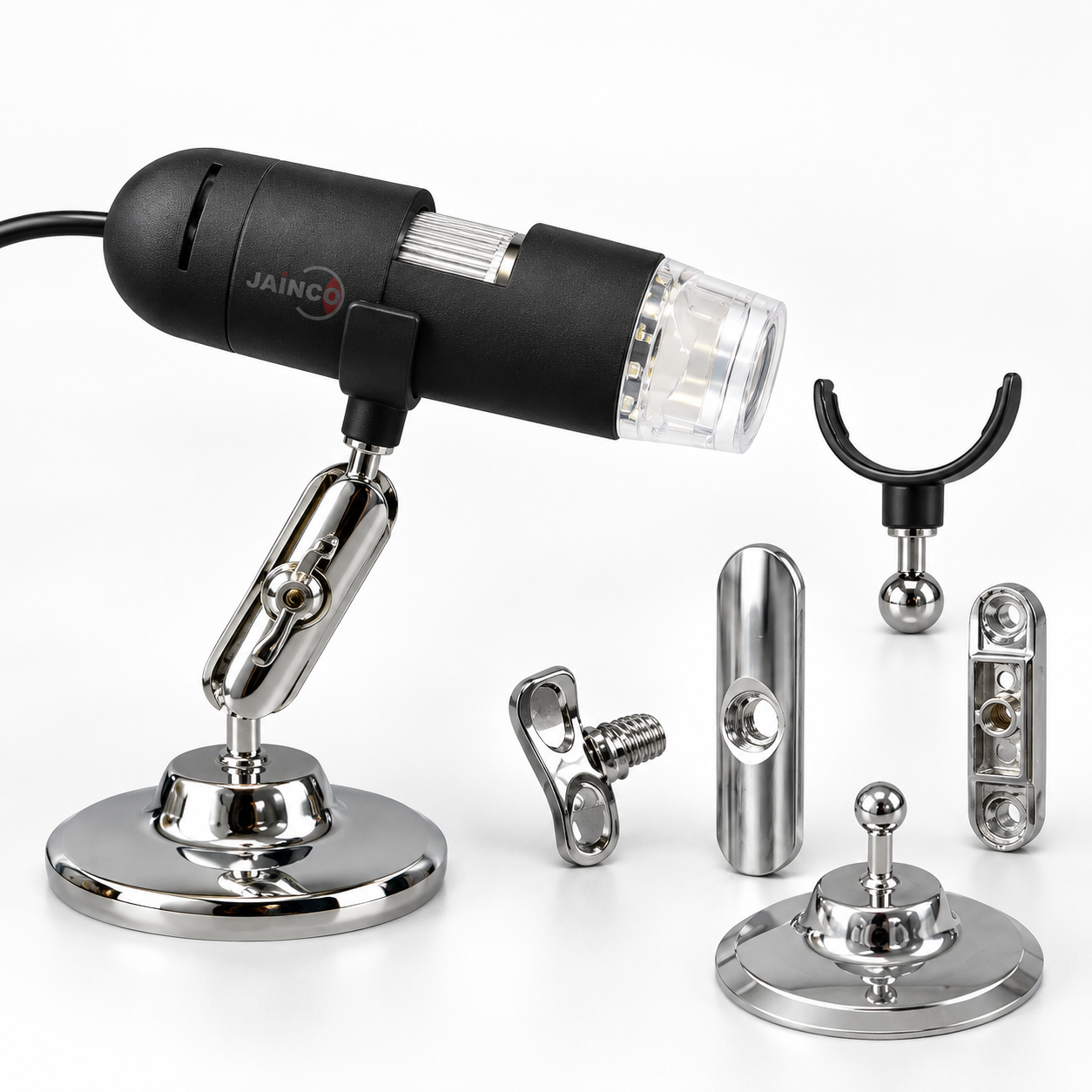

The USB Digital Microscope with 2MP Camera (SKU JA-M-8141) is a compact computer microscope supplied by JaincoLab for inspecting electronic components, materials and classroom specimens on screen. Its 2 MP sensor gives 20x to 200x, eight LEDs with intensity control light the object, and it sits on an adjustable stand with measurement software included.
Specifications
Values from the listing for the 2 MP USB model are set out here.
| Product | USB Digital Microscope with 2MP Camera |
| SKU | JA-M-8141 |
| Image sensor | 2 MP |
| Magnification | 20x-200x |
| Focus range | Manual, 10-500 mm |
| Frame rate | Up to 30 fps under 600 lux |
| Capture resolution | 2560 x 2048, 2000 x 1600, 1600 x 1280, 1280 x 1024 down to 320 x 240 |
| Photo format | JPEG or BMP |
| Light source | 8 LEDs with intensity control |
| Stand | Adjustable stand |
| Software | Measurement software with on-screen display languages |
| Size and weight | 4.33 x 1.30 in; 0.20 lb |
Uses of the 2 MP USB digital microscope
- Inspection of solder joints and electronic components
- Close-up views of fabrics, paper and materials
- Showing small specimens on a computer screen in class
- Measuring features in captured images
Scope of supply and ordering
The listing covers the USB microscope, its adjustable stand and the measurement software. Quantities, packing and delivery are confirmed on the quotation.
Frequently asked questions
What focus range does it have?
Manual focus from 10 mm to 500 mm, so it can view close objects at 200x or larger objects from a distance at low magnification.
Which image sizes can it capture?
Stills and video from 320 x 240 up to 2560 x 2048, saved as JPEG or BMP.
Related products
- USB Digital Microscope with 5MP Camera
- 1080P Full HD Digital Microscope
- Stand Alone LCD Screen Digital Microscope
- 1080P Full HD Wi-Fi Digital Microscope
Higher-resolution and optical models are in the microscope range.
Request a quote
To order the USB Digital Microscope with 2MP Camera, send the quantity and destination on the contact page. Tender and project enquiries can be sent through the tenders page.
