Zener Diode Characteristics Apparatus Forward and Reverse V-I Characteristics Manufacturer,Supplier and Exporter in India
Product Code : JA-SCD-1084

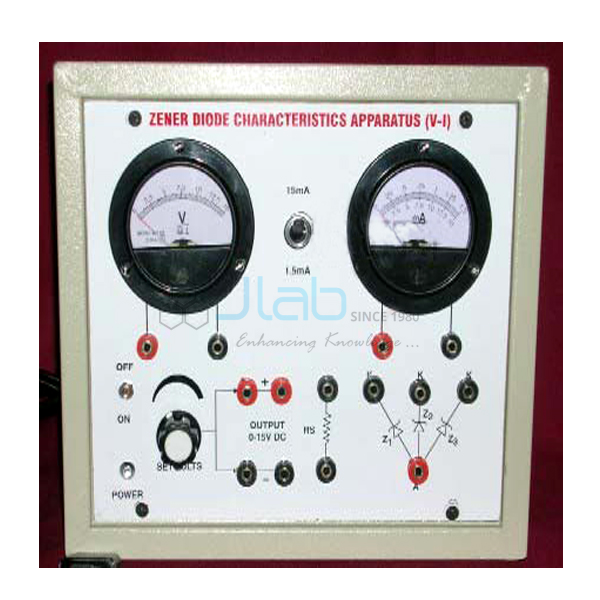

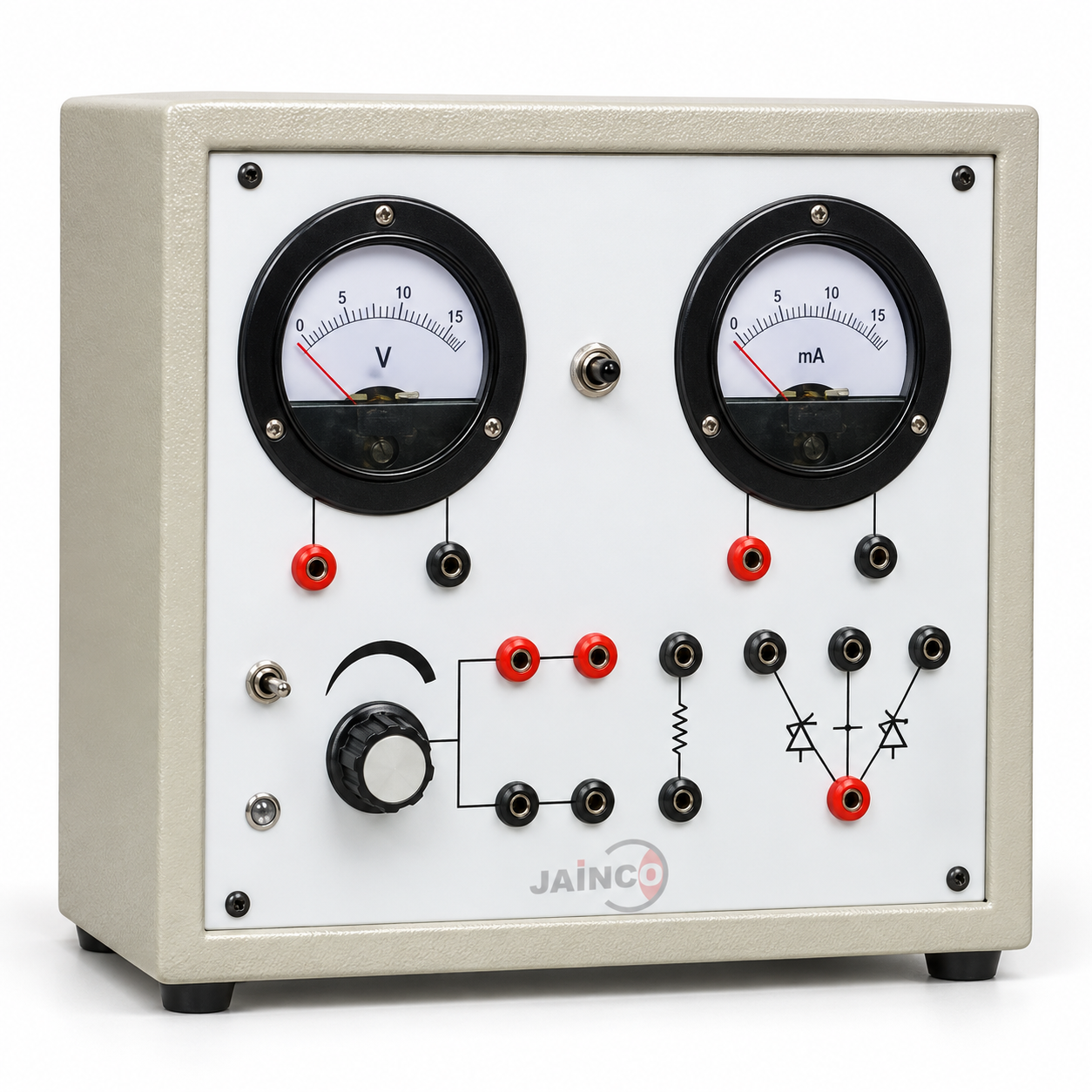

The Zener Diode Characteristics Apparatus (SKU JA-SCD-1084) is used to plot the forward and reverse V-I characteristics of a Zener diode, including the breakdown region in reverse bias. A regulated 0-25 V DC, 15 mA supply is built in, separate meters read voltage and current, and the Zener diodes are mounted on the panel with terminal connections.
Specifications
The listing gives these details:
| Product | Zener Diode Characteristics Apparatus Forward and Reverse V-I Characteristics |
| SKU | JA-SCD-1084 |
| Power supply | Regulated DC, 0-25 V, 15 mA |
| Meters | Separate voltage and current meters |
| Diodes | Zener diodes on panel, terminal connections |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the Zener Diode Characteristics Apparatus plot?
The forward and reverse V-I characteristics of a Zener diode.
What supply is built in?
A regulated 0-25 V DC, 15 mA supply.
