CNC Lathe Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9030

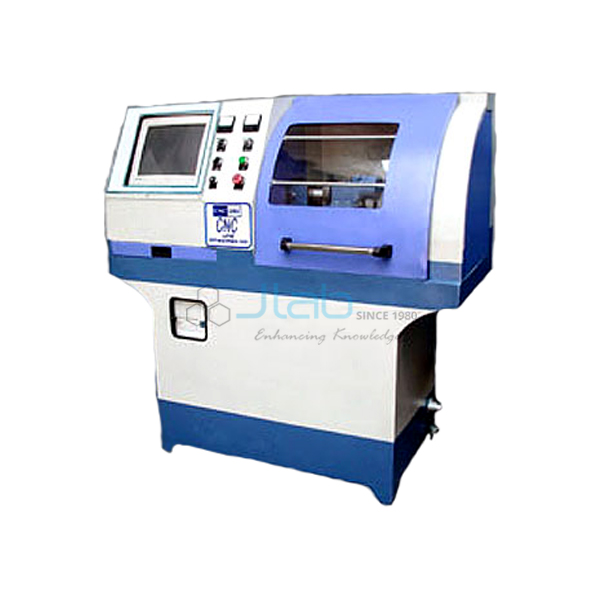

The CNC Lathe Trainer (SKU JA-CLE-9030) is a CNC lathe trainer for teaching CNC turning. Longitudinal and cross feeds run on ball lead screws driven by hybrid stepper motors, a brushless spindle motor gives the drive, and a 4-way tool post holds the tools. It swings 250 mm over the bed with 450 mm between centres, and has an automatic safety door lock, work light, extra power socket for a computer and power cut-off protection. It is supplied by JaincoLab.
Specifications
The trainer swings 250 mm over the bed and 110 mm over the apron, has 450 mm between centres and a 135 mm bed, measures 1370 x 700 x 1450 mm and weighs 420 kg net; feeds use ball lead screws with hybrid stepper motors.
| Product | CNC Lathe Trainer |
| SKU | JA-CLE-9030 |
| Swing over bed | 250 mm (10 in) |
| Swing over apron | 110 mm (4.3 in) |
| Distance between centres | 450 mm (18 in) |
| Bed width | 135 mm (5.3 in) |
| Feeds | Ball lead screws driven by hybrid (mixed type) stepper motors |
| Spindle motor | Brushless |
| Tool post | 4-way |
| Features | Automatic safety door lock; work light; power socket for computer; power cut-off protection |
| Machine size (L x W x H) | 1370 x 700 x 1450 mm |
| Weight (net / gross) | 420 / 490 kg |
Applications of the CNC lathe trainer
The trainer gives students a compact, enclosed CNC lathe for writing and proving turning programs, with the same feed and tool post principles as industrial machines.
- CNC turning program writing and proving
- Facing, turning, taper and profile operations
- 4-way tool post indexing and offsets
- Safe machine operation with door interlock
- CNC practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the CNC lathe trainer as specified. CNC control software, computer and tooling are confirmed on the quotation.
Frequently asked questions
What is the swing and length capacity?
250 mm swing over bed and 450 mm between centres.
How are the feeds driven?
By ball lead screws driven by hybrid stepper motors.
What safety features are listed?
An automatic safety door lock and power cut-off protection.
