Universal Surface Gauge Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9097

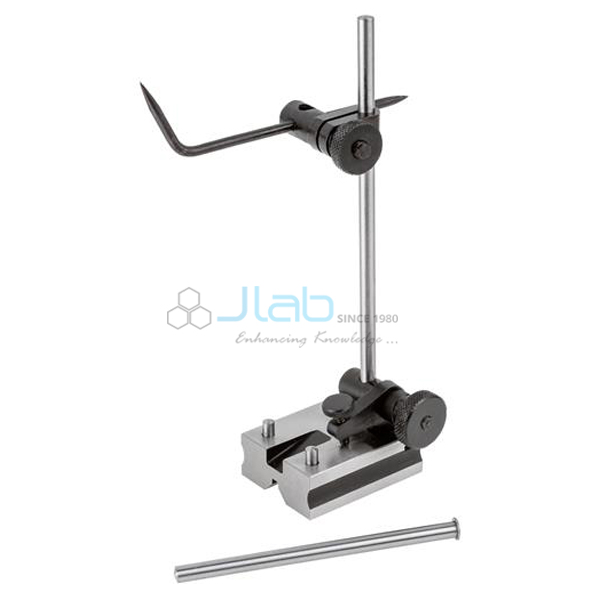

The Universal Surface Gauge (SKU JA-CLE-9097) is a marking and setting gauge with a hardened steel base, surface ground with a V-groove, a 250 mm spindle and a scriber with scriber and spindle clamps. Used on a surface plate, this universal surface gauge scribes lines parallel to the base and checks the height and parallelism of work. It is supplied by JaincoLab for fitting and machining workshops in ITI, polytechnic and engineering colleges.
Specifications
The Universal Surface Gauge has a hardened steel base that is surface ground with a V-groove for use on round work, a 250 mm spindle, and a scriber held by a scriber clamp and spindle clamp for fine setting.
| Product | Universal Surface Gauge |
| SKU | JA-CLE-9097 |
| Base | Hardened steel, surface ground with V-groove |
| Spindle length | 250 mm |
| Fittings | Scriber, scriber clamp and spindle clamp |
Applications of the universal surface gauge
On a surface plate, the surface gauge is used to scribe lines at a set height, find centres on round bar and set work level on machine tables.
- Scribing lines parallel to the base on a surface plate
- Finding centres of round bar using the V-groove
- Setting work level on a machine table
- Marking-out practicals in ITI, polytechnic and B.Tech workshops
Scope of supply and ordering
This listing covers one universal surface gauge with hardened steel base, 250 mm spindle, scriber and clamps. A surface plate is not part of this listing.
The Universal Surface Gauge is supplied for single laboratories as well as bulk orders for colleges, polytechnics and training institutes.
Frequently asked questions
What is the spindle length?
250 mm.
Can it be used on round work?
Yes. The ground base has a V-groove for seating on round bar.
Is a scriber included?
Yes, with a scriber clamp and spindle clamp.
Related products
See the complete mechanical engineering lab equipment range for related items, including workshop hand tools and metrology.
Request a quote
To get a quotation for the Universal Surface Gauge, send SKU JA-CLE-9097, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
