Computer Aided Optical Comparator Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8932

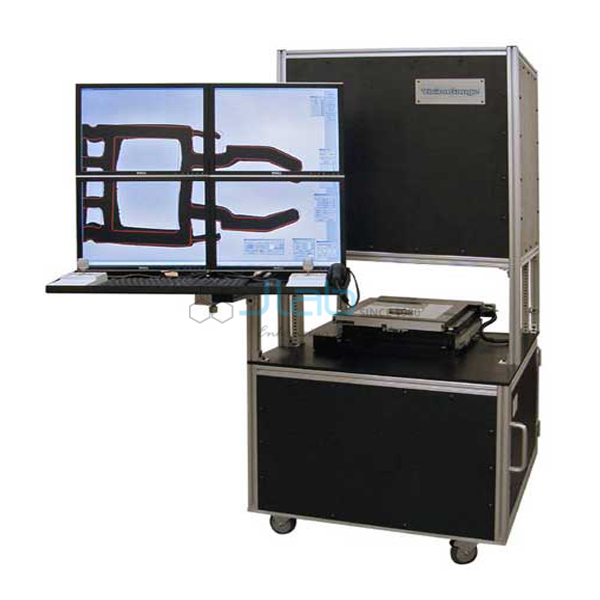

The Computer Aided Optical Comparator (SKU JA-SOMLE-8932) is a computer aided optical comparator that determines deviation from a specified dimension by optical means. It has a 350 mm screen with profile edge detection, long focal length lenses and profile illumination. The precision stage is positioned by joystick or by software-controlled two-axis stepper motors, and linear encoders record positions to 0.002 mm, with manual Z-axis measurement. It is supplied by JaincoLab for metrology labs.
Specifications
The comparator has a 350 mm screen with edge detection, a stepper-driven two-axis measuring stage with 0.002 mm linear encoders, joystick positioning, manual Z axis and metrology software; the computer specification is confirmed on the quotation.
| Product | Computer Aided Optical Comparator |
| SKU | JA-SOMLE-8932 |
| Principle | Optical measurement of deviation from a specified dimension |
| Screen | 350 mm, with profile edge detection |
| Optics | Extra long focal length lenses; profile illumination |
| Stage | Precision measuring stage; 2-axis stepper motor drive under software control |
| Encoders | Linear encoders recording positions to 0.002 mm |
| Manual control | Variable speed remote joystick; manual Z-axis measurement |
| Software | Metrology software storing measuring functions and stage movements |
| Computer specification | Confirmed on the quotation |
Applications of the computer aided optical comparator
The comparator automates profile measurement: edge detection and encoded stage moves let students program a measuring routine and repeat it on a batch of parts, as in production inspection.
- Automatic profile measurement with edge detection
- Deviation from specified dimensions
- Programmed measuring routines on batches
- Two-axis coordinate measurement
- Metrology and quality control practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the computer aided optical comparator with stage drives, encoders and metrology software. The computer and monitor supplied are specified on the quotation.
Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What screen size does it have?
A 350 mm screen with profile edge detection.
How precise is stage positioning?
Linear encoders record positions to 0.002 mm.
Can measurement be automated?
Yes. Software-controlled 2-axis stepper motors drive the stage for automatic measuring.
