Auto Collimator Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8925

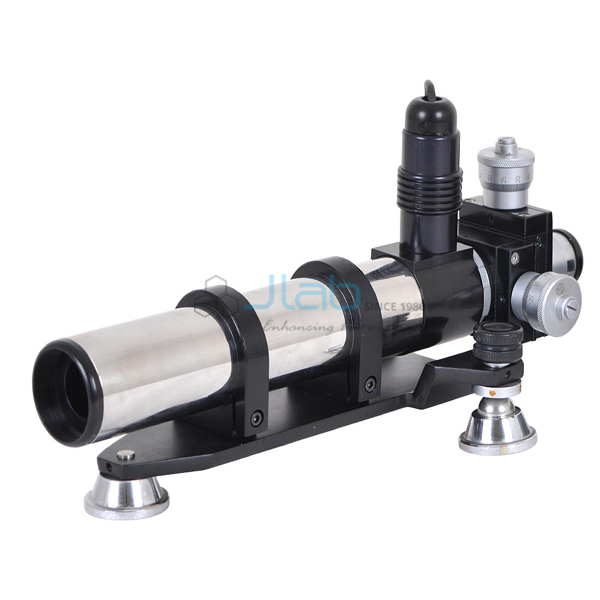

The Auto Collimator (SKU JA-SOMLE-8925) is a non-contact optical autocollimator for measuring small angles or tilt movements with very high sensitivity. It is used on the shop floor and in metrology labs for precision checks of straightness, parallelism, perpendicularity and flatness, with repeatable non-contact measurements and LED illumination. This autocollimator for the metrology lab is supplied by JaincoLab for engineering colleges, polytechnics and toolrooms.
Specifications
The autocollimator is a non-contact optical instrument with LED illumination for high-accuracy, repeatable small-angle measurement; the measuring range, resolution and working distance are confirmed on the quotation.
| Product | Auto Collimator |
| SKU | JA-SOMLE-8925 |
| Type | Optical autocollimator, non-contact |
| Measures | Small angles and tilt movements |
| Checks | Straightness, parallelism, perpendicularity, flatness |
| Illumination | LED |
| Range, resolution and working distance | Confirmed on the quotation |
Applications of the autocollimator in the metrology lab
The autocollimator reads the tiny tilt of a reflector moved along a surface or slideway, so students can map straightness and flatness errors far smaller than a dial gauge could show.
- Straightness of machine slideways
- Flatness of surface plates
- Parallelism and perpendicularity checks
- Small angle measurement with reflectors
- Engineering metrology practicals in B.Tech, diploma and toolroom training
Scope of supply and ordering
The listing covers the autocollimator as described. The reflector, stand, any angle gauges and a carrying case are not stated in the product data and are agreed when the order is placed.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination.
Frequently asked questions
Is the measurement contact or non-contact?
Non-contact, using an optical beam and reflector.
What can it check?
Straightness, parallelism, perpendicularity and flatness, and small angles or tilt.
What light source is used?
LED illumination.
Related products
- Angle Dekkor
- Optical Interferometer
- Universal Profile Projector
- Floating Carriage Diameter Measuring Machine
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
To order the Auto Collimator, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-SOMLE-8925. Tender and project enquiries can be sent through the tenders page.
