Digital IC Trainer TTL Manufacturer,Supplier and Exporter in India
Product Code : JA-BT-1491

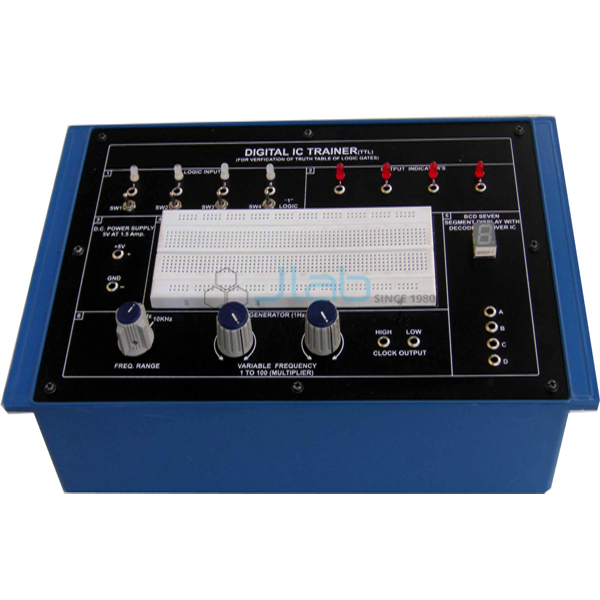

The TTL digital IC trainer is a breadboard trainer for gate-level experiments with 7400-series ICs: OR (7432), AND (7408), NOT (7404), NAND (7400), NOR (7402) and EX-OR (7486) are provided. It has a fixed 5 V ±1%, 1.5 A supply, a three-range variable clock from 1 Hz to 1 MHz, four logic switches, two LED indicators and a common-anode seven-segment display (SKU JA-BT-1491).
Specifications
The TTL trainer is listed with:
| Product | Digital IC Trainer TTL |
| SKU | JA-BT-1491 |
| DC output | Fixed 5 V ±1%, 1.5 A |
| Load regulation | ±1% of the highest specified output voltage (no load to full load) |
| Ripple and noise | Less than 5 mV |
| Variable clock | 1-100 Hz; 100 Hz-10 kHz; 10 kHz-1 MHz |
| Logic inputs | 4 high/low switches |
| Output indicators | 2 bright red 5 mm LEDs |
| Display | Seven-segment, common anode, red LED |
| Breadboard | Half main strip for connections; one full main strip for ICs |
| Logic gate ICs | 7432 OR, 7408 AND, 7404 NOT, 7400 NAND, 7402 NOR, 7486 EX-OR |
| Operating conditions | 0 to 40 °C, 95% RH at 40 °C |
| Input voltage | 230 V ±10%, 50 Hz AC |
Scope of supply and ordering
The listing covers the TTL IC trainer with the six logic gate ICs named above, supplied by JaincoLab; other ICs can be used for further experiments. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
Which gate ICs come with the TTL trainer?
7432 OR, 7408 AND, 7404 NOT, 7400 NAND, 7402 NOR and 7486 EX-OR.
Can other ICs be used on it?
Yes. Other ICs can be fitted on the breadboard to perform further experiments.
What clock ranges are provided?
Three ranges: 1-100 Hz, 100 Hz-10 kHz and 10 kHz-1 MHz.
Related products
More items of this type are listed in the breadboard trainer range.
Request a quote
Ask for the price of the Digital IC Trainer TTL by quoting SKU JA-BT-1491 on the JaincoLab contact page.
Bidding for a school or college laboratory tender? JaincoLab manufactures and exports equipment for Ministry of Education, World Bank and United Nations projects and has supplied them successfully in many countries. Share the tender schedule via our tenders page and we will quote line by line.
