Digital Logic Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-BT-1490

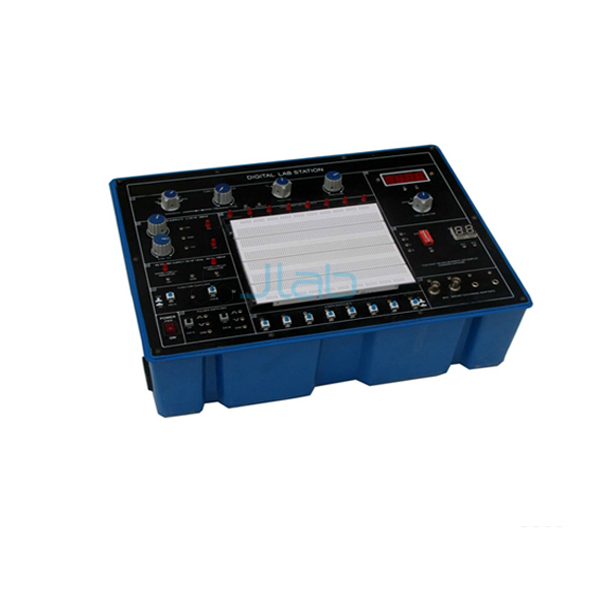

The digital logic trainer is a breadboard trainer with a fixed 5 V and variable 0 to ±18 V DC supply rated at 1 A, a 1 Hz to 1 MHz variable clock, 16 logic input switches, 16 LED output indicators, a 4-digit seven-segment display with decoder driver and a 0-20 V digital DC voltmeter. Its spring-loaded breadboard has 1680 tie points, and 29 ICs are provided (SKU JA-BT-1490).
Specifications
Specifications listed for the logic trainer:
| Product | Digital Logic Trainer |
| SKU | JA-BT-1490 |
| DC output | Fixed 5 V; variable 0 to ±18 V; 1 A |
| Load regulation | ±1% of the highest specified output voltage (no load to full load) |
| Ripple and noise | Less than 2 mV |
| Variable clock | 1 Hz to 1 MHz, three ranges with multiplier |
| Logic inputs | 16 high/low switches |
| Output indicators | 16 bright red 5 mm LEDs |
| Display | 4-digit seven-segment with decoder driver |
| Digital voltmeter | DC, 0-20 V |
| Breadboard | Spring-loaded, solder-less; 2 terminal strips of 640 tie points and 4 distribution strips of 100; 1680 tie points |
| ICs provided | 29 |
| Operating conditions | 0 to 40 °C, 95% RH at 40 °C |
| Input voltage | 230 V ±10%, 50 Hz AC |
Scope of supply and ordering
The listing covers the digital logic trainer with the 29 ICs provided, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
How many ICs are provided with the digital logic trainer?
29 ICs are provided with the trainer.
What display does it have?
A 4-digit seven-segment display with a decoder driver, plus 16 red LED output indicators.
What clock range is available?
1 Hz to 1 MHz, set with three frequency ranges and a multiplier.
