Spot Welding Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9048

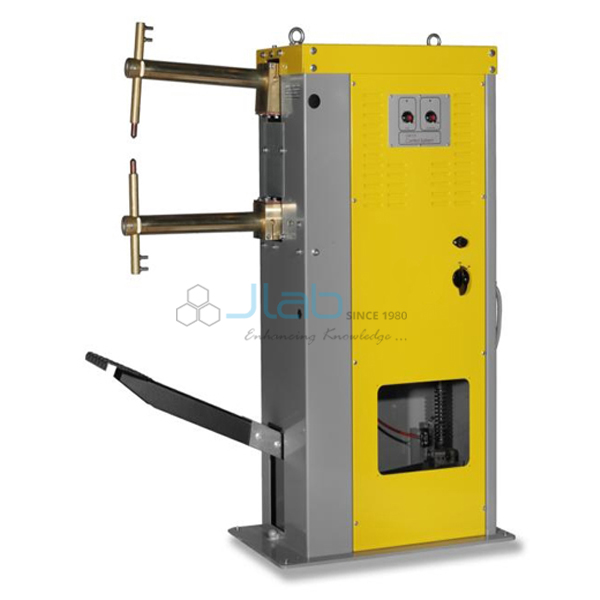

The Spot Welding Machine (SKU JA-CLE-9048) is a floor type resistance spot welding machine with foot operated control and a minimum capacity of 15 kVA. It spot welds mild steel, galvanised sheet and stainless steel from 1.5 + 1.5 mm (3 mm total). The machine is water cooled, with a motor pump water circulation, and has a throat depth of at least 16 inches, an electrode arm gap of at least 8 inches and about 1.5 inches of upper electrode movement. It is supplied by JaincoLab.
Specifications
The machine is a floor type, foot operated spot welder of at least 15 kVA on 220/380 V 3 phase 50 Hz, water cooled by a 220 V motor pump, with minimum 16 in throat, 8 in arm gap and about 1.5 in electrode movement.
| Product | Spot Welding Machine |
| SKU | JA-CLE-9048 |
| Type | Floor type resistance spot welding machine, foot operated |
| Capacity | Min. 15 kVA |
| Supply | AC 220/380 V, 3 phase, 50 Hz, with ground lead cable |
| Cooling | Water cooled; water receiver with motor pump (220 V, single phase) |
| Throat depth | Min. 16 in |
| Electrode arms gap | Min. 8 in |
| Upper electrode movement | About 1.5 in |
| Materials | Mild steel, galvanised sheet, stainless steel; min. 1.5 + 1.5 mm |
Applications of the spot welding machine
The spot welder is used to join overlapping sheet metal, the main joining method in car bodies and sheet metal products, and lets trainees see how current, pressure and time make a sound spot weld.
- Spot welding of mild steel sheet
- Spot welding of galvanised and stainless sheet
- Effect of welding time and pressure on weld quality
- Sheet metal fabrication practice
- Welding and sheet metal courses in ITI, polytechnic and B.Tech programmes
Scope of supply and ordering
The listing covers the floor type spot welding machine with water circulation arrangement as described. Spare electrode tips are confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What capacity is it?
A minimum capacity of 15 kVA.
What can it weld?
Mild steel, galvanised sheet and stainless steel from 1.5 + 1.5 mm.
How is it cooled?
By water, circulated from a water receiver by a motor pump.
