Student Electrical Kymographs Manufacturer,Supplier and Exporter in India
Product Code : JA-SEK-2347

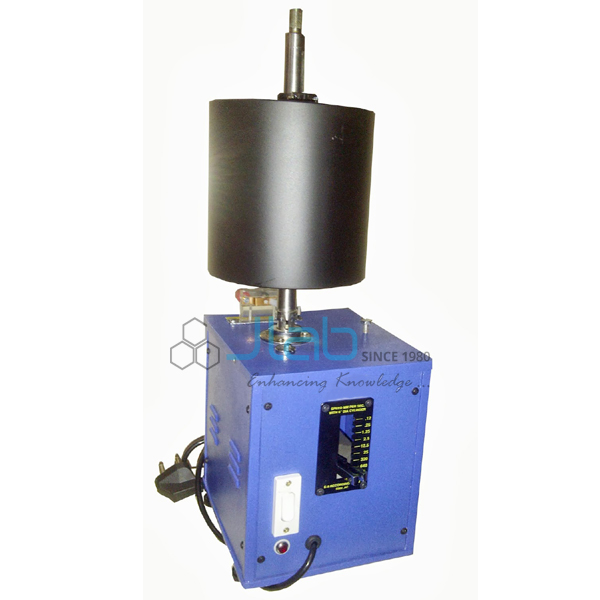

The Student Electrical Kymograph (SKU JA-SEK-2347) is an electrically driven recording drum for pharmacology and physiology practicals, on which muscle and tissue responses are traced on paper against time. This student electric kymograph has a constant speed motor, gear box and plate clutch housed in the base, a 6 inch diameter main cylinder on a stainless steel spindle and eight surface speeds. JaincoLab makes it for pharmacy, medical and life-science college laboratories.
Specifications
The kymograph is driven by a constant speed electric motor through an accurate gear box and a robust plate clutch in the base, the 6 inch main cylinder turns on a standardised stainless steel spindle, and the surface speed is chosen by sliding a lever into the marked slot, or with a knob on separate models.
| Product | Student Electrical Kymographs |
| SKU | JA-SEK-2347 |
| Drive | Constant speed electric motor with gear box and plate clutch, housed in the base |
| Speed selection | Lever slid into a slot marked with the surface speed; knob selection on separate models |
| Surface speeds | 8 speeds, including 25, 12.5, 2.5, 1.2, 0.25 and 0.12 mm per second; the full speed set is confirmed on the quotation |
| Main cylinder | 6 inch diameter |
| Spindle | Stainless steel, standardised so that cylinders are universal and interchangeable |
| Contacts | Double electric contact arms clamped on the main spindle, with a double-contact block on top of the base |
| Optional | Long paper extension device, fitted in position by a single set screw |
Applications of the student electric kymograph
Colleges use the student electric kymograph to record muscle, heart and isolated tissue responses at a chosen paper speed, while the double electric contact arms on the spindle can close a circuit at a set point of each revolution, for example to time a stimulus.
- Recording isolated muscle and tissue responses in experimental pharmacology practicals
- Slow speeds for long continuous traces and faster speeds for single contractions
- Timed stimulation through the double electric contact arms and contact block
- Longer records with the optional long paper extension device
- Equipping student benches for B.Pharm and physiology practical classes
Scope of supply
The listing covers the student electric kymograph with the motor, gear box and plate clutch in its base, the 6 inch main cylinder on its stainless steel spindle, and the double electric contact arms and contact block. The long paper extension device is optional. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Packing, lead time and minimum order quantity are confirmed on each quotation according to the number of kymographs, the speed-selection model (lever or knob) and the delivery destination. JaincoLab supplies batches for student practical benches as well as bulk and export orders for colleges in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How many speeds does it have?
It has eight surface speeds, selected with a lever in the marked slots or with a knob on separate models. The listed speeds include 25, 12.5, 2.5, 1.2, 0.25 and 0.12 mm per second.
What is the cylinder size?
The main cylinder is 6 inches in diameter and fits a standardised stainless steel spindle, so cylinders are interchangeable.
Can it record longer traces?
Yes. An optional long paper extension device can be fitted in position with a single set screw.
What should a quotation request include?
Send the SKU JA-SEK-2347, the number of kymographs, lever or knob speed selection, any long paper extension devices and the delivery destination.
