Welding Training Set Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9044

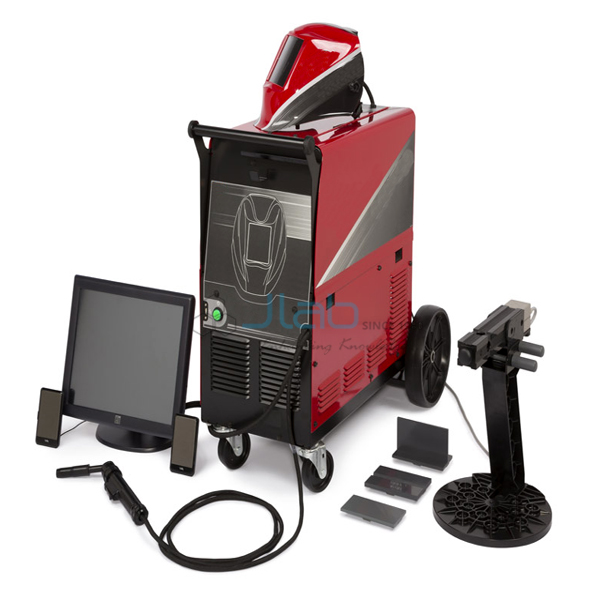

The Welding Training Set (SKU JA-CLE-9044) is a welding simulator for manual welding practice on butt and corner joints in MMAW (manual metal arc), MIG and TIG processes, so trainees learn the basic skills before real welding. It includes one welding head each for MMAW, MIG and TIG, a monitor of at least 250 mm that shows the weld result, a built-in thermal printer to print faults and defects, and a welding helmet with audio. It is supplied by JaincoLab.
Specifications
The set has MMAW, MIG and TIG simulation heads, a monitor of at least 250 mm, a built-in thermal printer with two paper rolls, a helmet with audio system and training packages, and runs on 220 V, 50 Hz, single phase.
| Product | Welding Training Set |
| SKU | JA-CLE-9044 |
| Type | Manual welding simulation set (butt and corner joints) |
| Processes | MMAW, MIG, TIG (one welding head each) |
| Display | Monitor screen showing welding results, min. 250 mm |
| Printer | Built-in thermal printer; faults and defects reported and printed; 2 rolls of paper (min.) |
| Helmet | Welding helmet set with audio system |
| Training packages | 3 training video packages (format confirmed on the quotation) |
| Electrical supply | 220 V, 50 Hz, 1 phase |
Applications of the welding simulator
The simulator lets trainees practise torch angle, travel speed and arc length without consuming metal or gas, and the printed fault reports show instructors exactly where each trainee needs help.
- Basic MMAW technique on butt and corner joints
- MIG and TIG torch handling
- Fault and defect recognition from printed reports
- Assessment before live welding
- Welder trade training in ITI, polytechnic and TVET centres
Scope of supply and ordering
The listing covers the welding training set with three welding heads, monitor, thermal printer, helmet with audio, printing paper, training packages and accessories needed for use.
Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
Which welding processes are simulated?
MMAW (manual metal arc), MIG and TIG, on butt and corner joints.
How are results shown?
On a monitor of at least 250 mm, with faults and defects printed on the built-in thermal printer.
What power supply is needed?
220 V, 50 Hz, single phase.
