Wing Divider Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9095

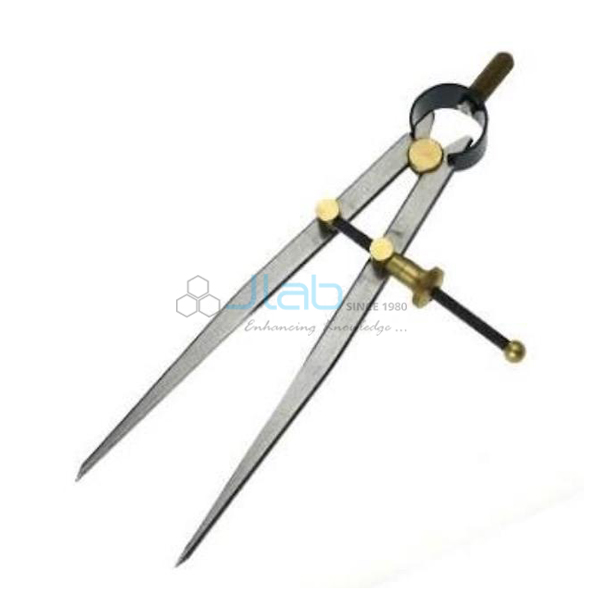

The Wing Divider (SKU JA-CLE-9095) is a box-jointed, fine-polished workshop divider with a wing and locking screw, used for scribing arcs and circles and stepping off equal distances on metal. This wing divider for metal work keeps its setting under the locking screw while students mark out. It is supplied by JaincoLab for fitting, sheet-metal and machining workshops in ITI, polytechnic and engineering colleges.
Specifications
The Wing Divider has box-jointed legs, a fine-polished finish and a wing with locking screw that holds the leg spread once set; the product data gives no leg length, so the size is confirmed on the quotation.
| Product | Wing Divider |
| SKU | JA-CLE-9095 |
| Type | Wing divider |
| Joint | Box jointed |
| Finish | Fine polished |
| Setting | Wing with locking screw |
| Leg length | Confirmed on the quotation |
Applications of the wing divider in marking out
Dividers are used after the scriber and rule in marking out, to draw arcs and circles and to transfer or step off equal distances accurately on the workpiece.
- Scribing arcs and circles on metal
- Stepping off equal hole spacings along a line
- Transferring measurements from a rule to the job
- Fitting and sheet-metal exercises in ITI and polytechnic workshops
Scope of supply and ordering
This listing covers one box-jointed wing divider with locking screw. Leg length and quantities are set on the quotation.
The quotation confirms MOQ, lead time and packing for the Wing Divider against the quantity and delivery address.
Frequently asked questions
What is a wing divider used for?
For scribing arcs and circles and stepping off equal distances when marking out metal.
How is the setting held?
A wing with a locking screw holds the legs at the set spread.
Which size is supplied?
The leg length is confirmed on the quotation; state the size you need.
