Creep Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8922

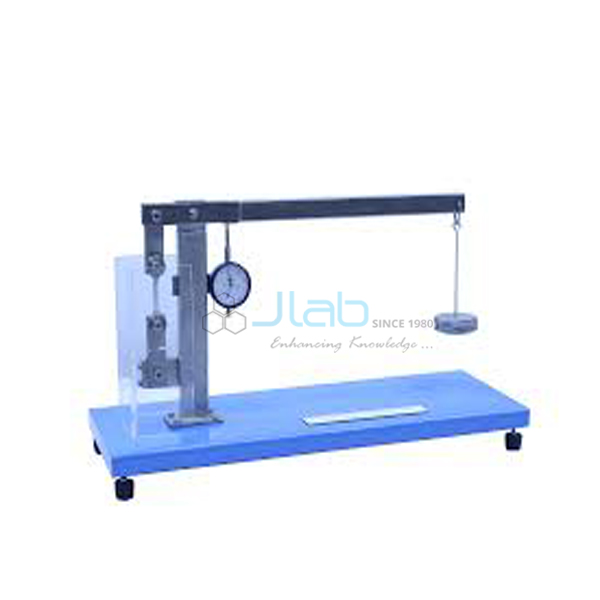

The Creep Testing Machine (SKU JA-SOMLE-8922) is a table-top creep testing apparatus for investigating the creep behaviour of different materials. It tests flat specimens of lead and polypropylene (PP) with a 2 x 5 mm cross-section and 25 mm measured length, at tensile stresses from 5 to 25 N/mm2, and a dial position gauge reads elongation over 0 to 10 mm to 0.01 mm. With a conditioning box, tests above or below room temperature are possible. It is supplied by JaincoLab.
Specifications
The unit tests flat lead and PP specimens (2 x 5 mm section, 25 mm gauge length) at 5-25 N/mm2 tensile stress, measuring elongation 0-10 mm with 0.01 mm resolution; the conditioning box is quoted separately.
| Product | Creep Testing Machine |
| SKU | JA-SOMLE-8922 |
| Type | Table unit for creep behaviour of materials |
| Specimen material | Lead, PP |
| Specimen cross-section | 2 x 5 mm |
| Measured length | 25 mm |
| Tensile stress range | 5 - 25 N/mm2 |
| Position measurement | 0 - 10 mm, resolution 0.01 mm |
| Temperature | Above or below room temperature with conditioning box |
Applications of the creep testing apparatus
Because lead and polypropylene creep noticeably at room temperature, students can record a full creep curve in a lab session and study primary, secondary and tertiary creep without a furnace.
- Creep curve (strain against time) under constant load
- Primary, secondary and tertiary creep stages
- Effect of stress level on creep rate
- Effect of temperature using the conditioning box
- Materials science practicals in B.Tech, M.Tech and diploma courses
Scope of supply and ordering
The listing covers the table-top creep testing unit as described. Specimens and the conditioning box are confirmed on the quotation.
Frequently asked questions
Which specimen materials are used?
Flat specimens of lead and polypropylene (PP).
What stress range is available?
Tensile stresses from 5 to 25 N/mm2.
How is elongation measured?
With a position gauge reading 0 to 10 mm at 0.01 mm resolution.
Can tests be run at other temperatures?
Yes, above or below room temperature with a conditioning box; send SKU JA-SOMLE-8922 and whether you need it when requesting a quote.
